CAD Library: SJS-FP System

Joint Sizes with * have 3D .DWF files available.

BIM files are also available for these products in our BIM Library.

Please consult EMSEAL for updates to product configuration and other assembly components.

Filter By:

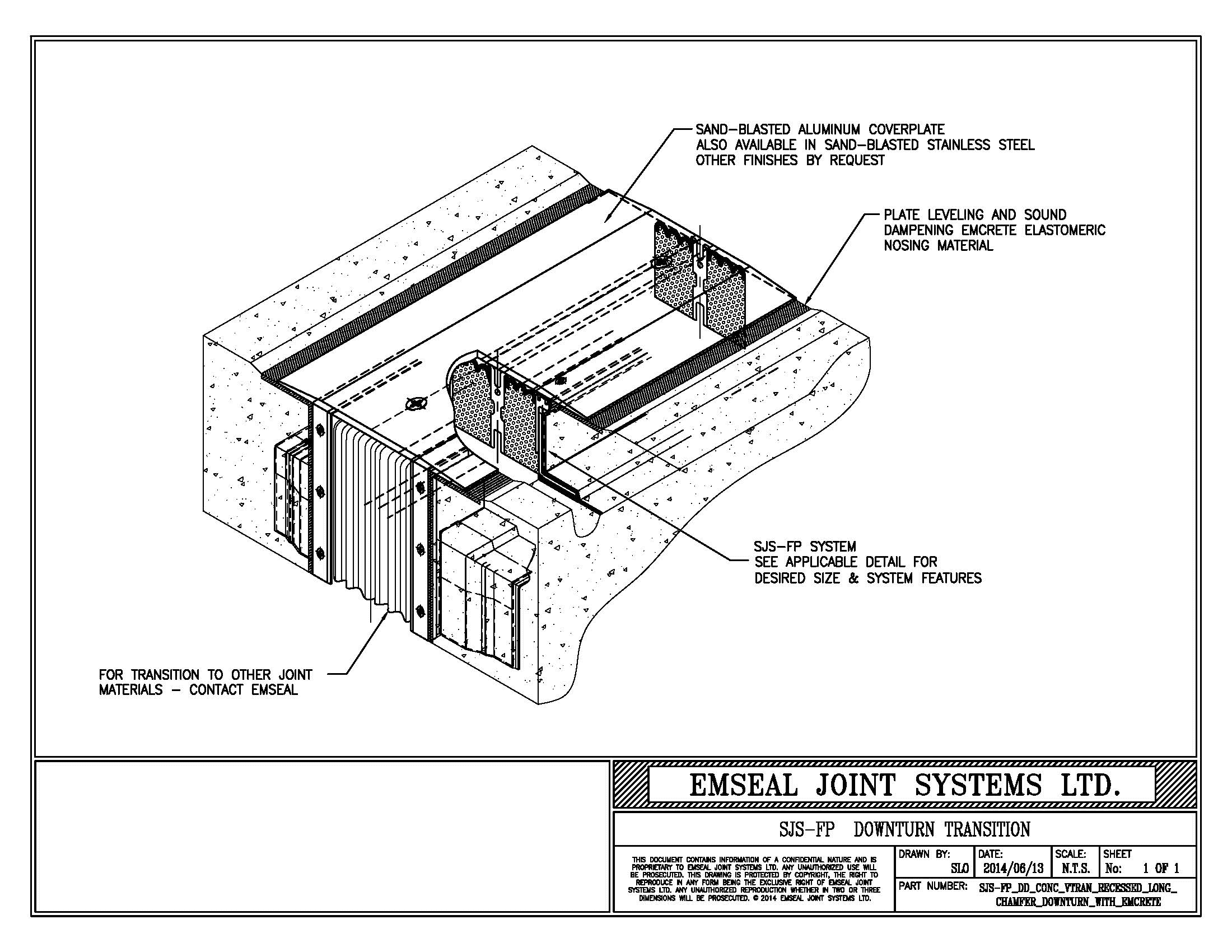

SJS-FP_DD_CONC_VTRAN_RECESSED_LONG_CHAMFER_DOWNTURN_WITH_EMCRETE SJS-FP Downturn Transition

Transition: SJS-FP Downturn Transition (Typical)

Download DWG Download PDF
SJS-FP_DD_CONC_VTRAN_BKT_RECESSED_LONG_CHAMFER_UPTURN_INTO_COLORSEAL_DOUBLE_COLUMN SJS-FP Upturn Transition to Colorseal

Transition: SJS-FP Upturn Transition to Colorseal (Typical)

Download DWG Download PDF
Watertight expansion joint transitions in SJS-FP System from EMSEAL

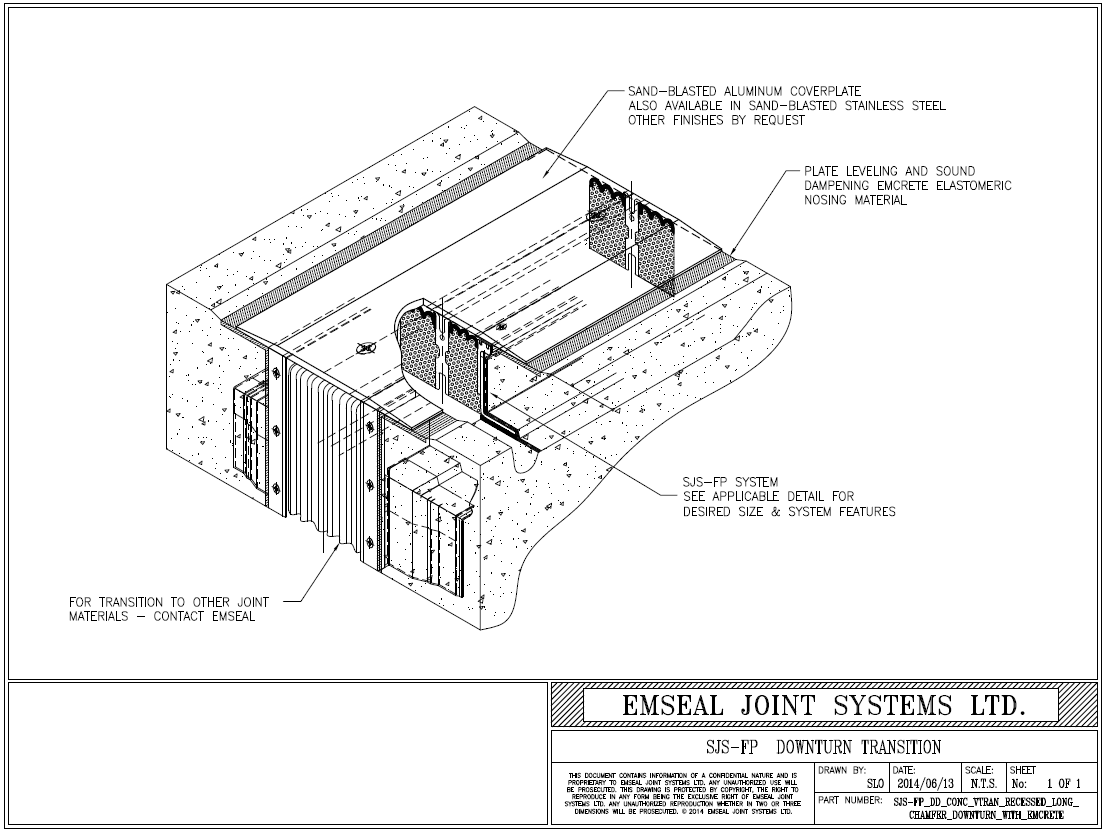

SJS-FP Downturn Transition (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

Watertight expansion joint transition from deck to wall with SJS-FP from EMSEAL

SJS-FP Upturn Transition (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

SJS-FP_Deck to Wall_concrete_3-8_plate_long_chamfer_emcrete_typical

SJS-FP Deck-to-Wall with Emcrete — 3/8 inch Coverplate

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

SJS-FP_Deck to deck_concrete_3-8_plate_long_chamfer_emcrete_typical

SJS-FP Deck-to-Deck with Emcrete — 3/8 inch Coverplate (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

Plaza deck to wall seismic expansion joint sealing SJS-FP from EMSEAL

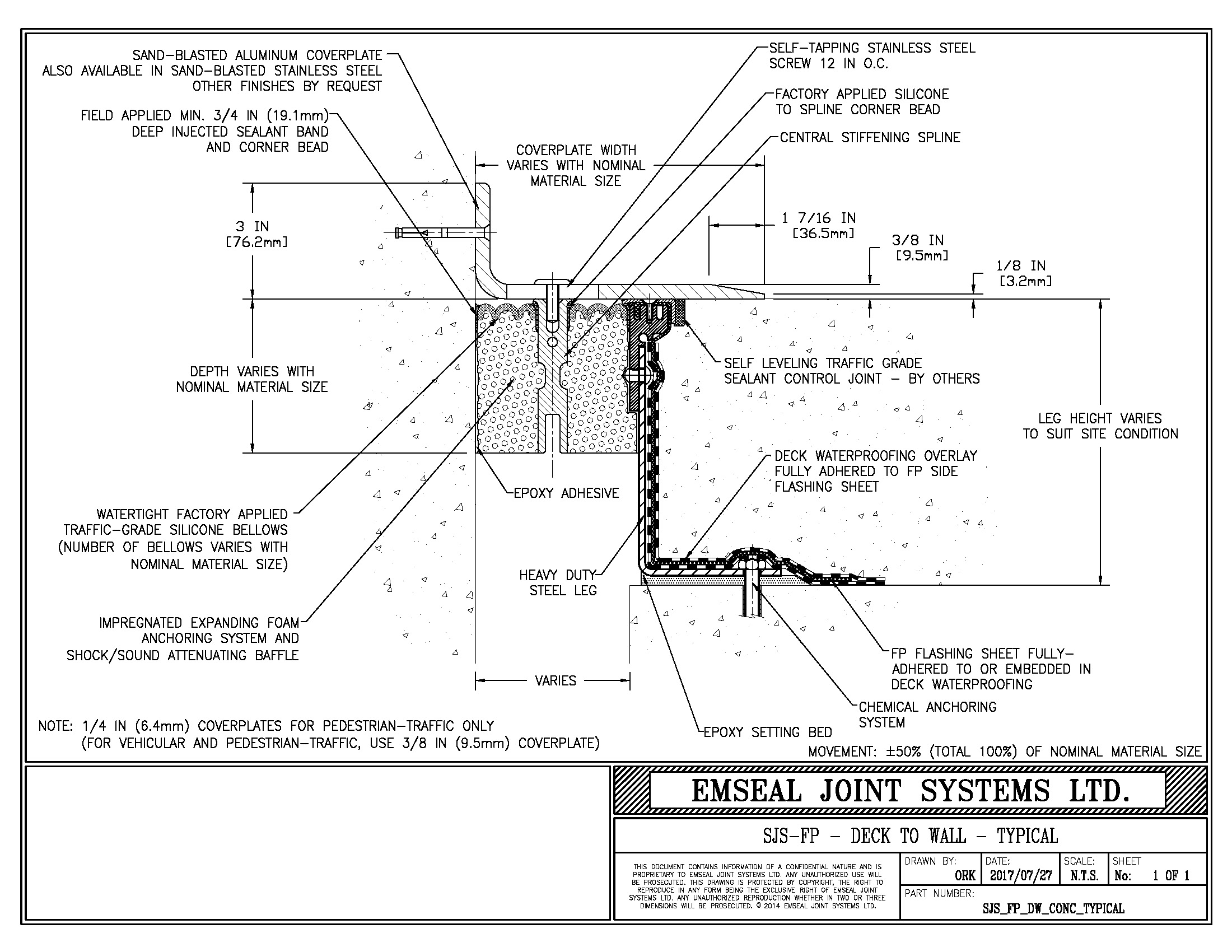

SJS-FP Deck-to-Wall — 3/8 inch Coverplate (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

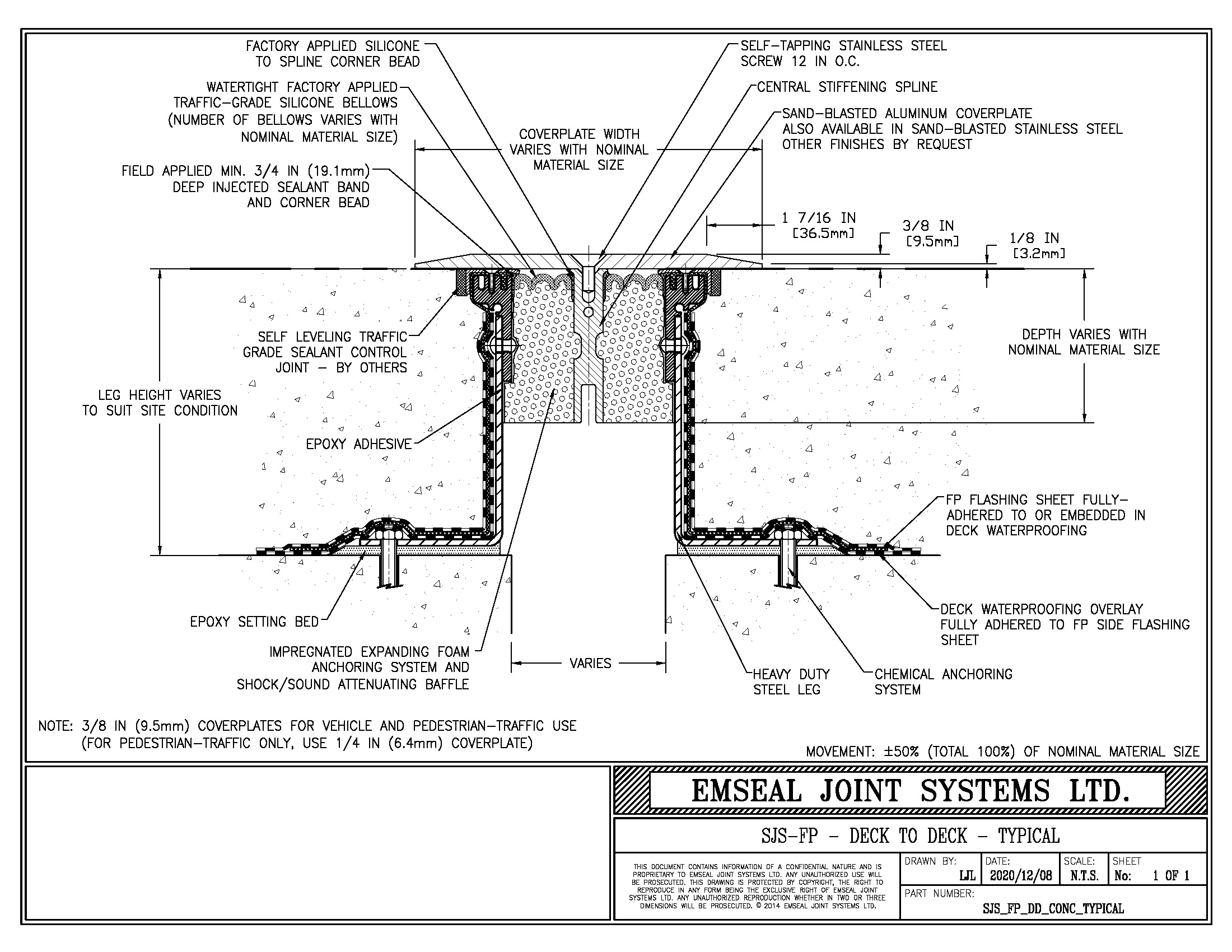

SJS-FP Deck-to-Deck — 3/8 inch Coverplate (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

Download DWF Viewer Here

NOTE: The CAD drawings on this site are generic and/or were created to treat project-specific conditions. They may or may not be suitable for your specific project or application. Please consult EMSEAL on the use of any material for any application. Thank you.

The following collection of details is being continuously updated and does not cover all possible conditions. If you don’t see something that closely suits your application, please contact us.

These drawings are intended for use during the specification of EMSEAL products in legitimate Architectural, Engineering and Construction applications. Any misuse or duplication of these copyrighted details for any other purpose, will be vigorously prosecuted.
