CAD Library: Colourseal VHE

Joint Sizes with * have 3D .DWF files available.

BIM files are also available for these products in our BIM Library.

Please consult EMSEAL for updates to product configuration and other assembly components.

Filter By:

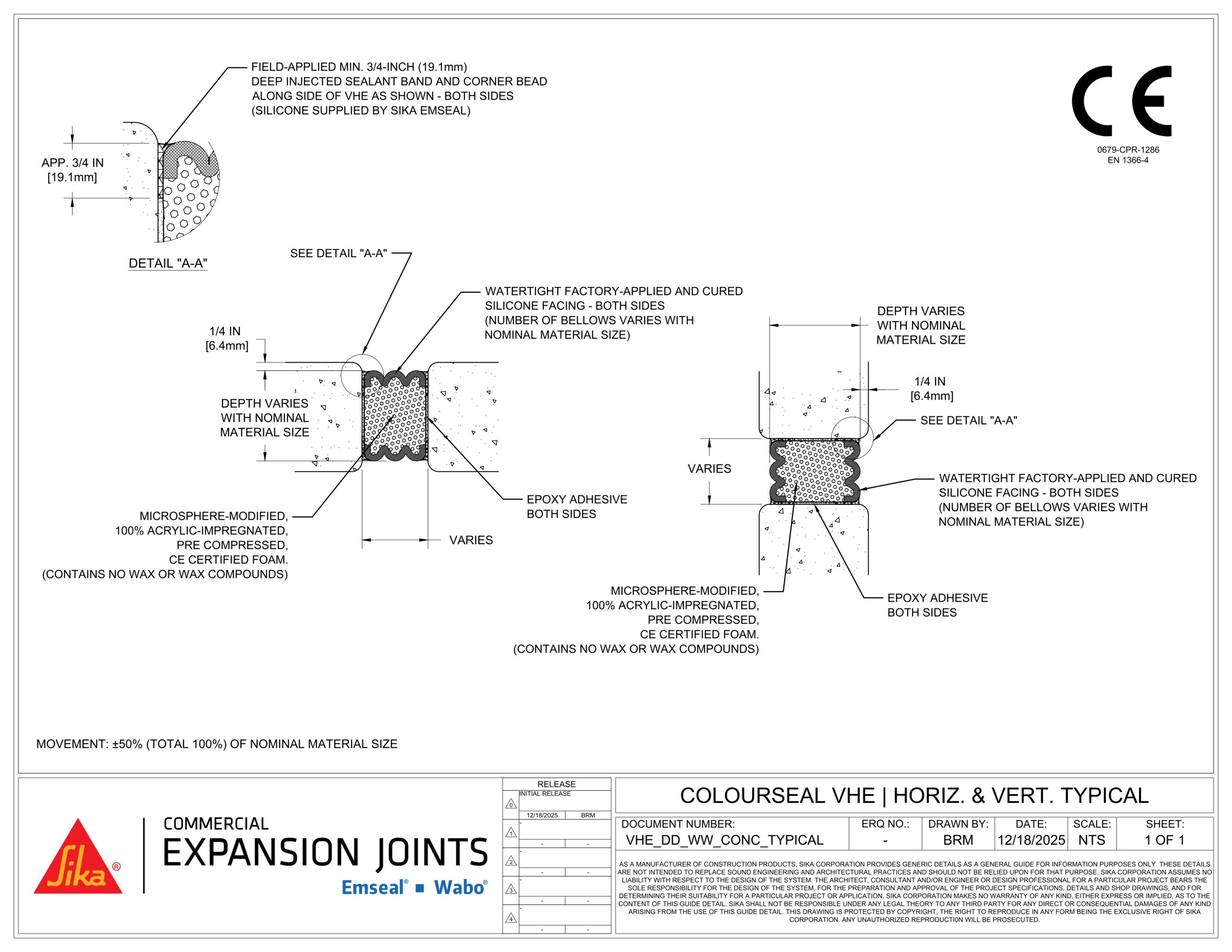

CAD section details of Sika Emseal Colourseal VHE-CE CE-marked movement joint in vertical and horizontal conditions, tested in accordance with EN-1366-4, showing precompressed foam core with colored silicone faces bonded to substrates to deliver a watertight, UV-stable seal with ±50% movement capacity

Colourseal VHE Vertical & Horizontal Conditions

Download DWG Download PDF

Download DWF Viewer Here

NOTE: The CAD drawings on this site are generic and/or were created to treat project-specific conditions. They may or may not be suitable for your specific project or application. Please consult EMSEAL on the use of any material for any application. Thank you.

The following collection of details is being continuously updated and does not cover all possible conditions. If you don’t see something that closely suits your application, please contact us.

These drawings are intended for use during the specification of EMSEAL products in legitimate Architectural, Engineering and Construction applications. Any misuse or duplication of these copyrighted details for any other purpose, will be vigorously prosecuted.
