Wabo®SeismicFloor (FNB & FXE)

Seismic Interior floor expansion joint coverplate - Thermal and multidirectional seismic movement capable

Sika Emseal now supports and sells all Wabo® Commercial Building Expansion Joints

NOTE: Wabo SeismicFloor FJC, FJG and FJX have been replaced with FNB and FXE (see below).

A seismic interior floor expansion joint cover, Wabo®SeismicFloor is provided in two different models for interior floor applications.

SeismicFloor FNB is designed with an inverted bevel coverplate thus reducing gaps between the cover and extension plate and is flush with finished floor. It is a durable and reliable interior floor system capable of accommodating thermal and multi-directional seismic movement.

FNB is designed for high volume foot traffic and heavy load conditions accepts most interior floor materials and finishes. Complies with ADA guidelines.

SeismicFloor FXE is designed for conditions without any blockouts. The coverplate rides on top of the finished floor. It is a durable and reliable interior floor system capable of accommodating thermal and multi-directional seismic movement.

FXE is designed for high volume foot traffic and heavy load conditions accepts most interior floor materials and finishes. Complies with ADA guidelines.

The included moisture barrier in FXE  helps prevent water infiltration to the floor below.

Specify Emshield® DFR for the added life safety assurance of built-in UL 2079 fire rating –  Consult Sika Emseal for available sizes.

Wabo®SeismicFloor (FNB & FXE)

Seismic Interior floor expansion joint coverplate - Thermal and multidirectional seismic movement capable

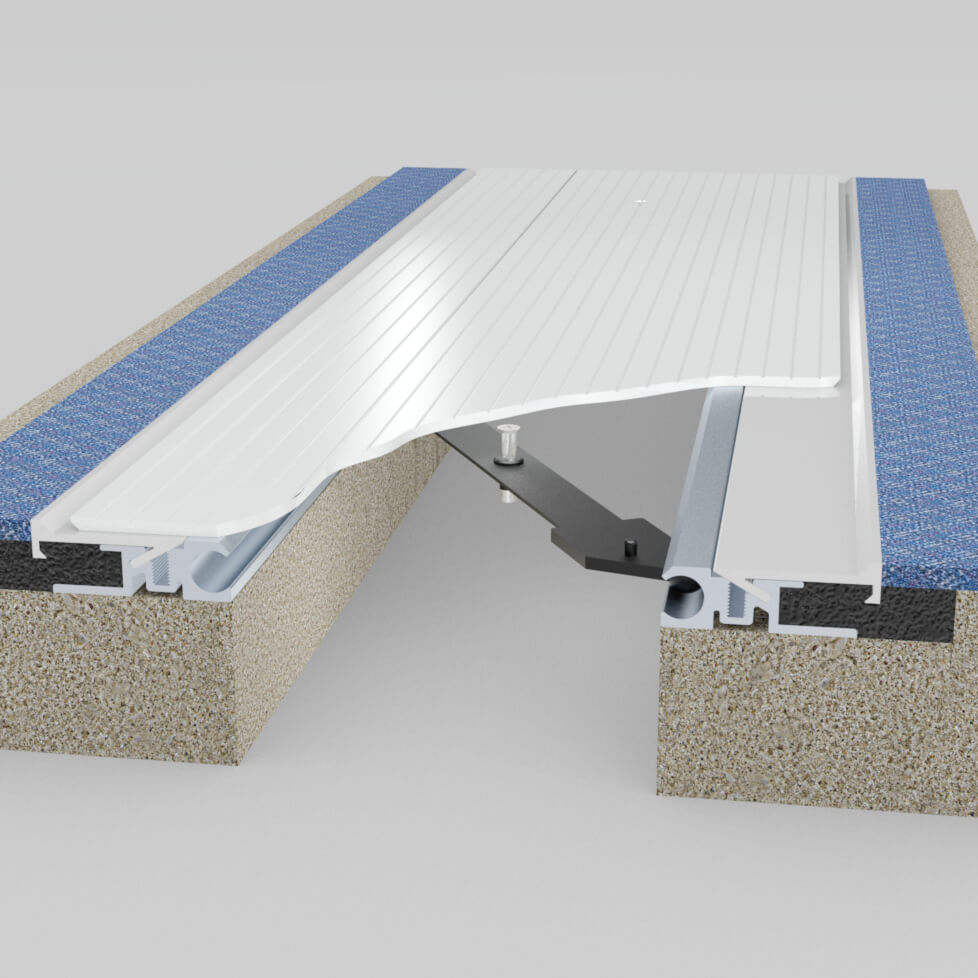

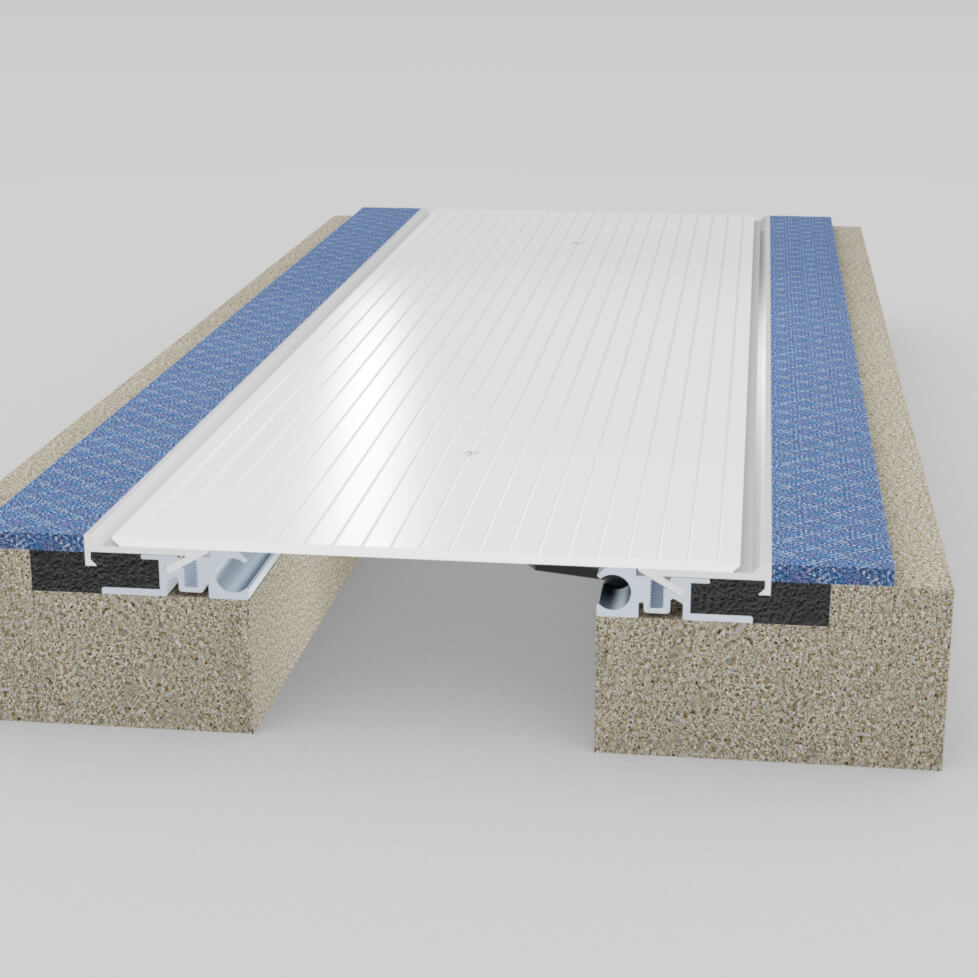

Wabo SeismicFloor (FNB) seismic interior floor expansion joint cover flush mount system in carpet

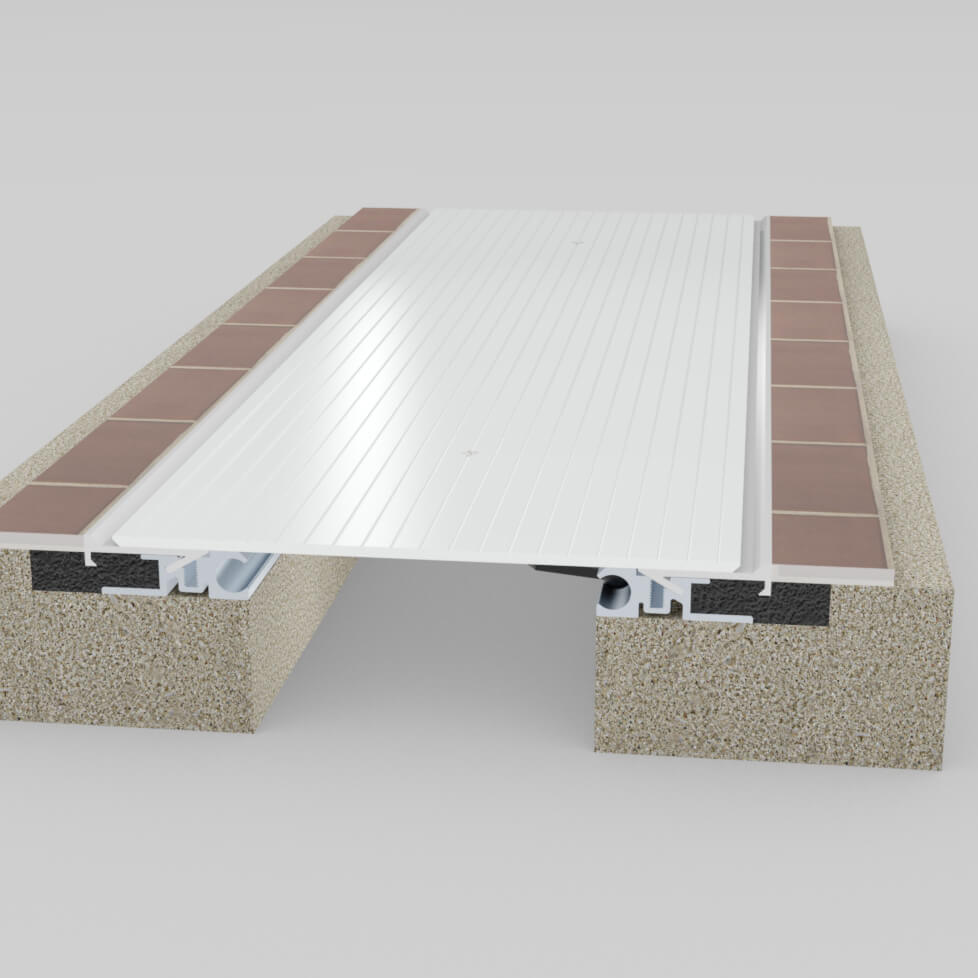

Wabo SeismicFloor FNB seismic interior floor recessed expansion joint cover plate system in tile
Wabo SeismicFloor FNB seismic interior floor flush mount expansion joint cover plate system in carpet

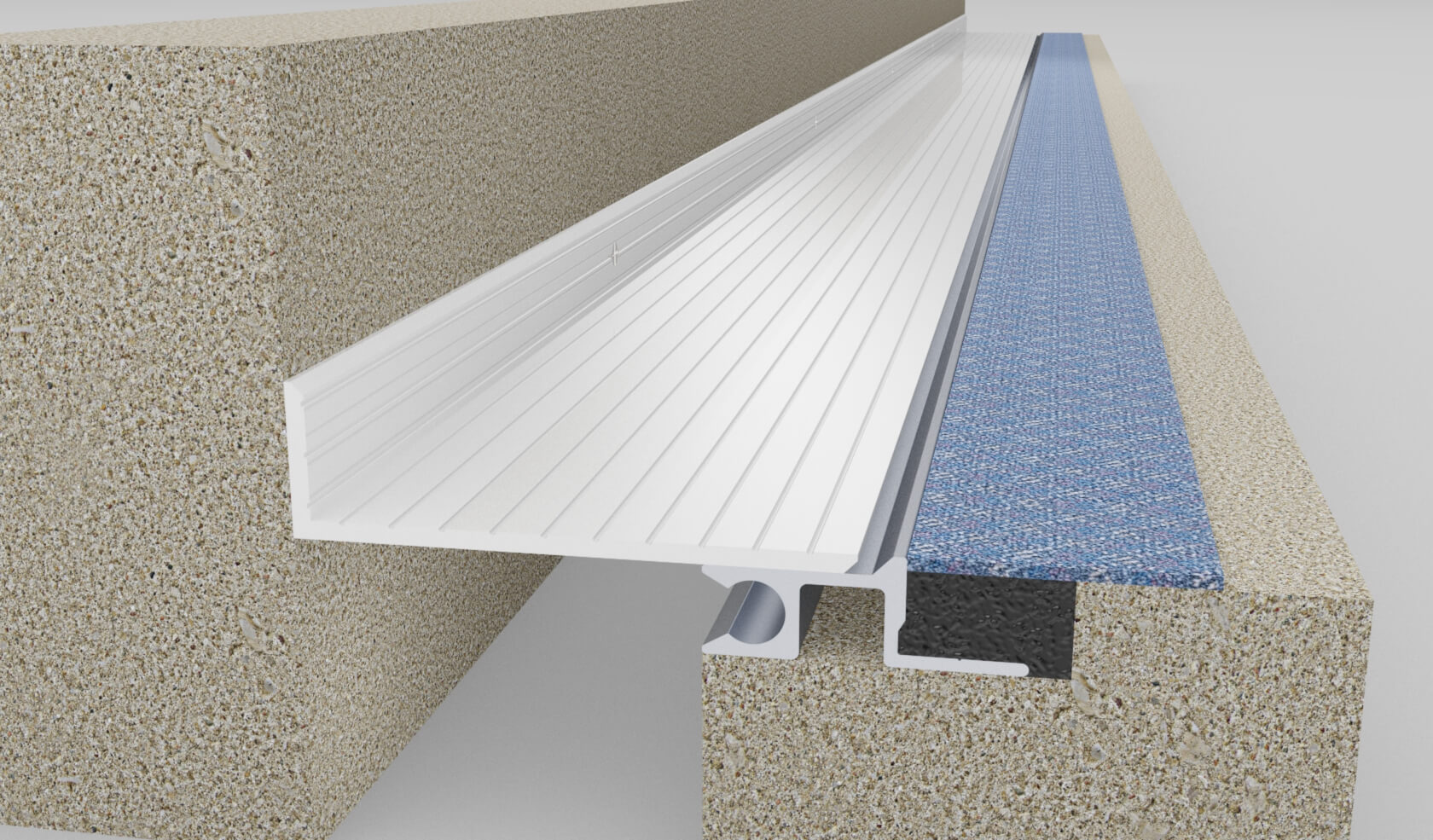

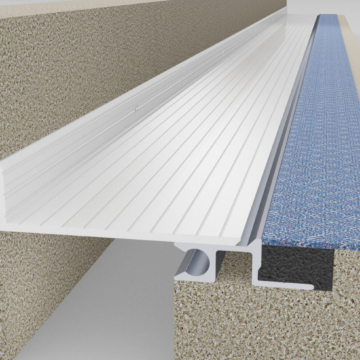

Wabo SeismicFloor FNB seismic interior floor tot wall flush mount expansion joint cover plate system in carpet

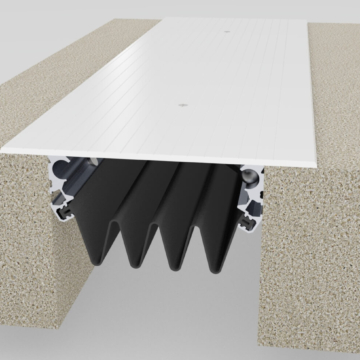

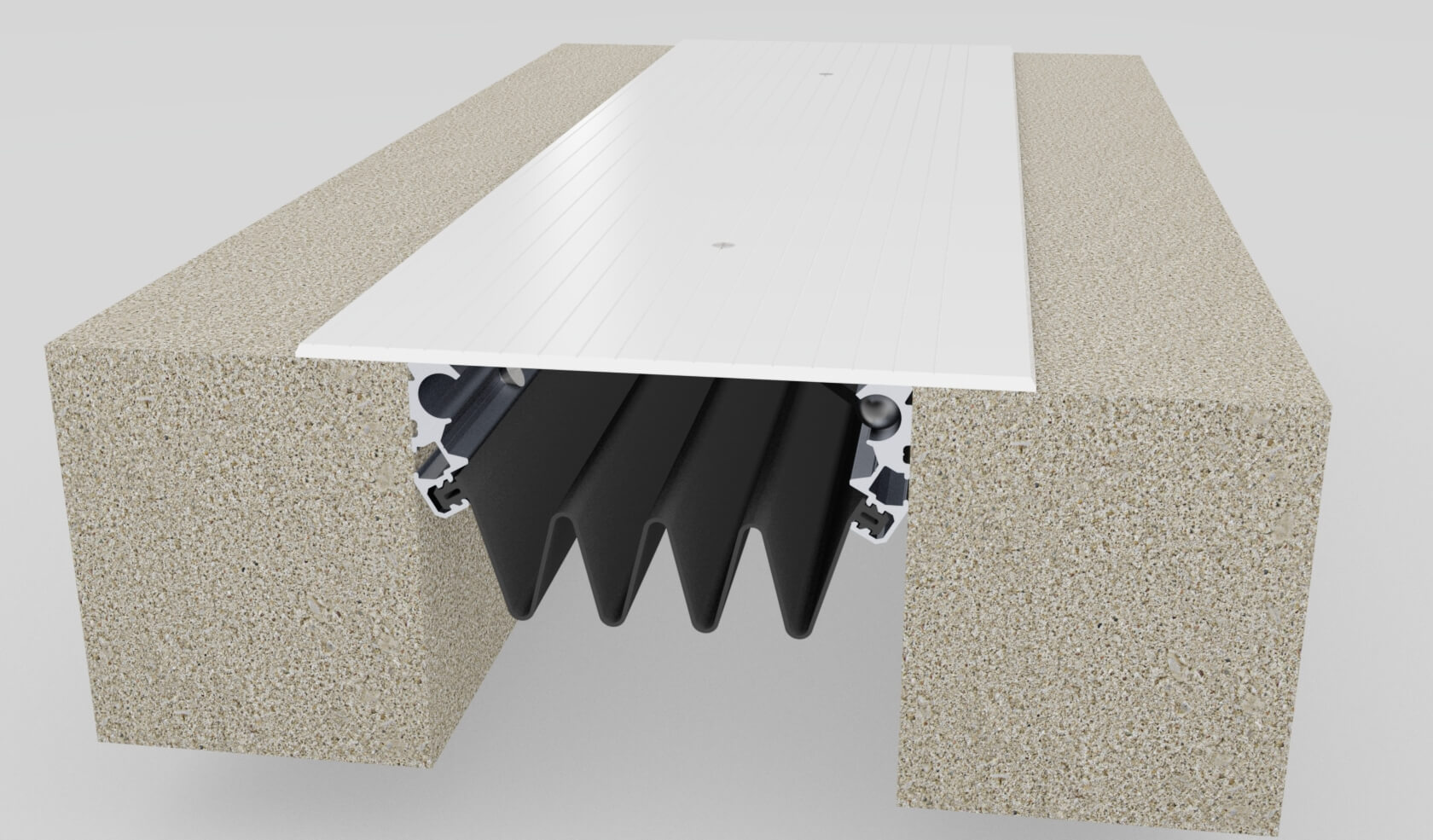

Wabo® Seismic Floor FXE interior floor expansion joint surface mounted cover

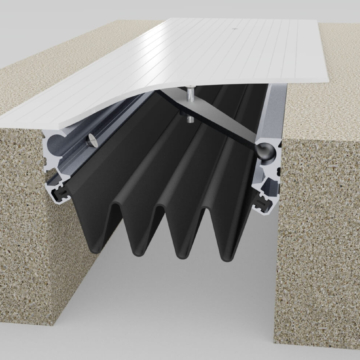

Wabo SeismicFloor (FXE) interior floor expansion joint surface mounted cover cut away

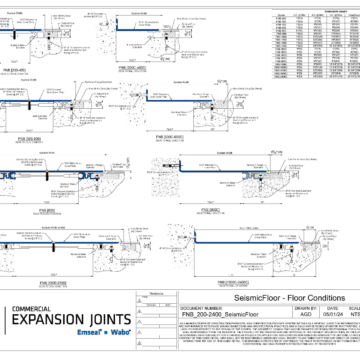

Wabo SeismicFloor (FNB) seismic interior floor expansion joint cover CAD Detail by Sika Emseal

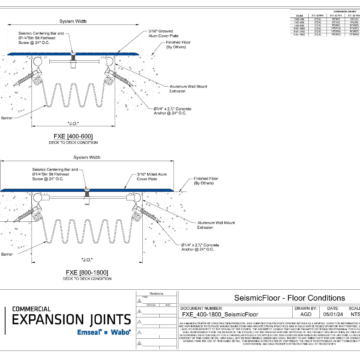

Wabo SeismicFloor (FXE) seismic interior floor expansion joint cover CAD Detail by Sika Emseal
1 of 8

Wabo®SeismicFloor (FNB) is a seismic interior floor expansion joint cover plate system that's recessed flush with the finished flooring. Shown here with carpet integrated into the cover.

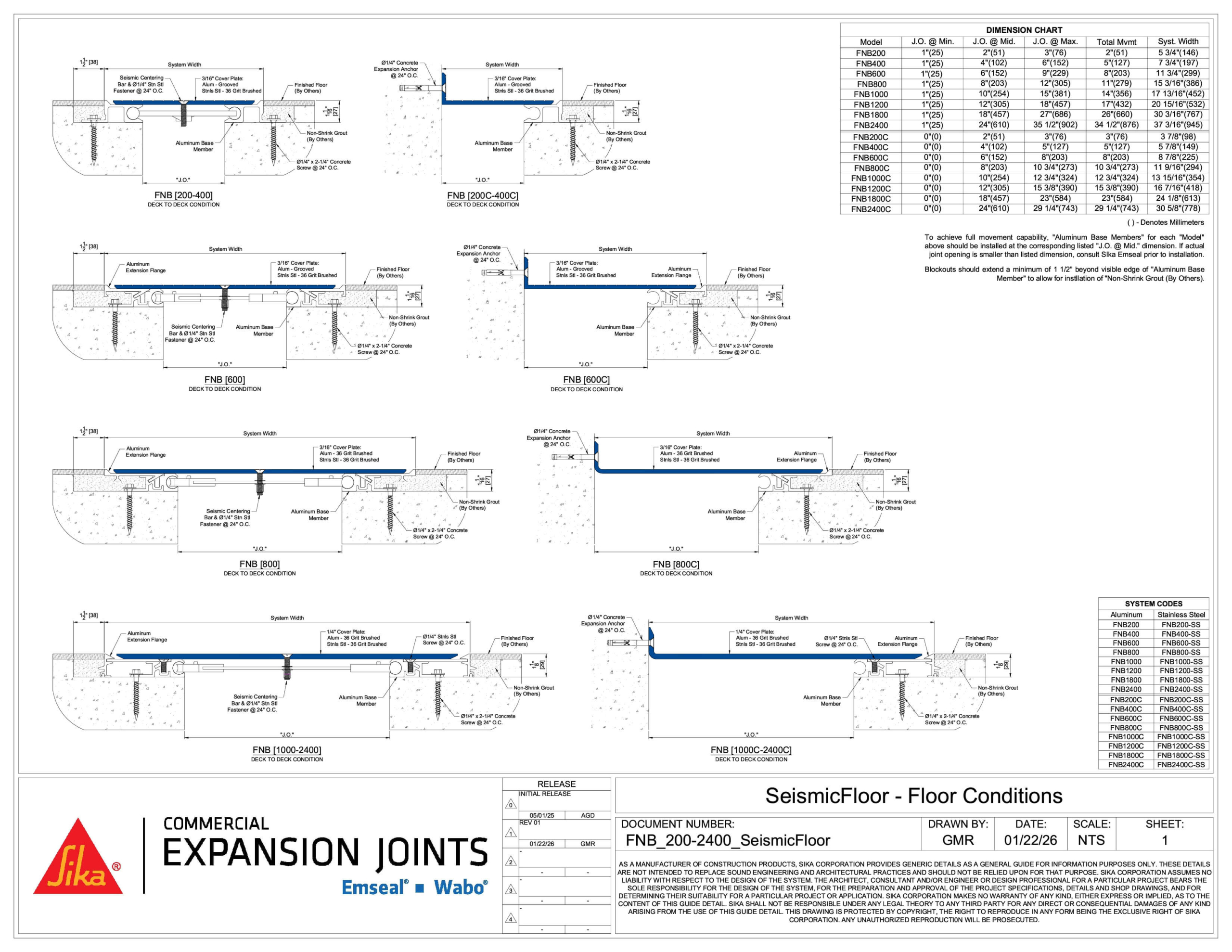

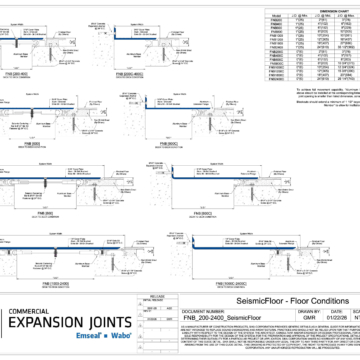

Wabo SeismicFloor (FNB) seismic interior floor expansion joint cover CAD Detail by Sika Emseal

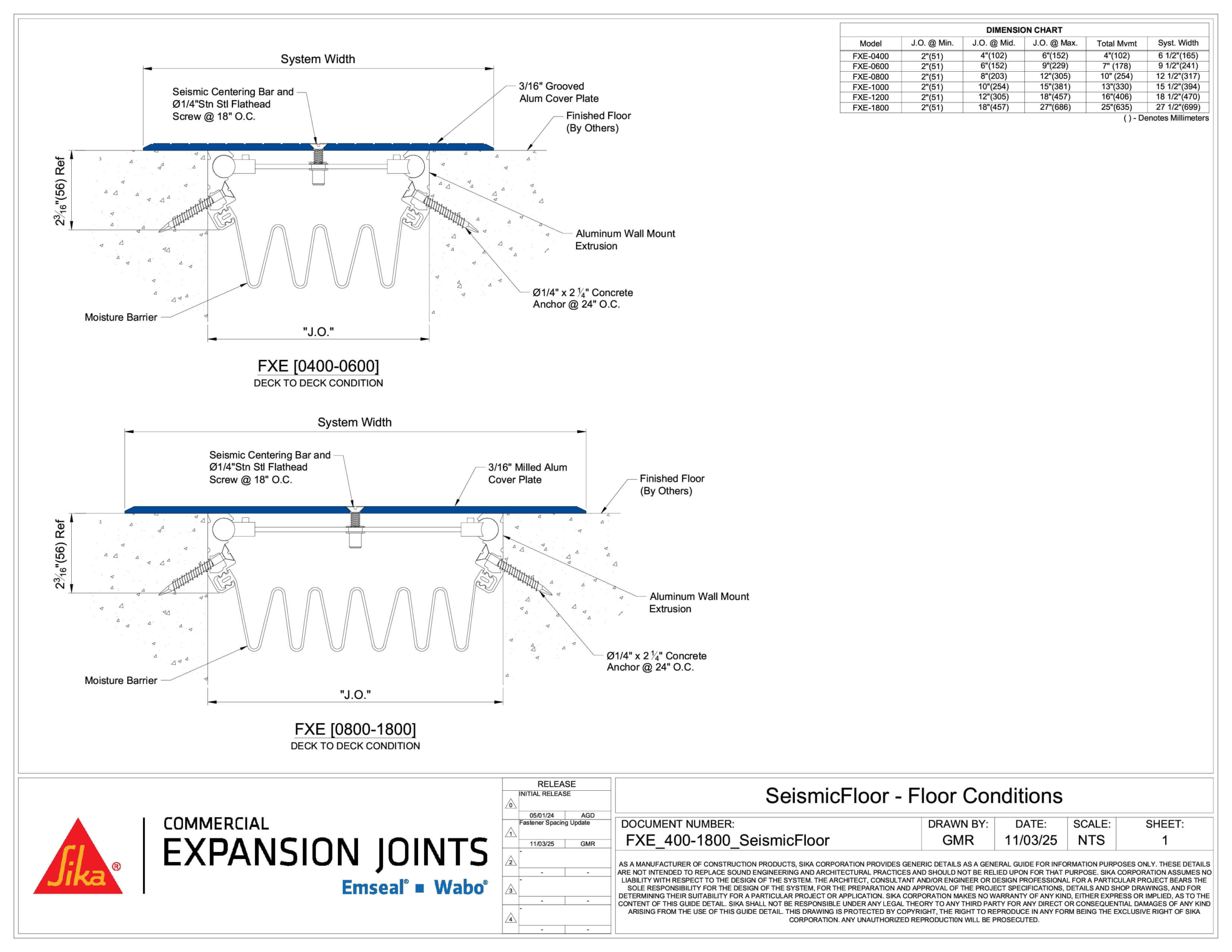

Wabo SeismicFloor (FXE) seismic interior floor expansion joint cover CAD Detail by Sika Emseal

Features

  • Multidirectional seismic movement capable
  • Blockout-free installation
  • ADA compliant
  • Load capacity: Medium to heavy options
  • Surface/Recessed mounting options
  • Floor-to-wall versions
  • Flooring compatibility with carpet, tile, etc.
  • Fire-rating available through addition of EMSHIELD® DFR —Consult Sika Emseal

Sizes

FNB (Flush mount):
2″ – 24″ (50mm – 610mm)

FXE (Surface mount):
4 – 18″ (100mm – 455mm)

Above are mean joint sizes at mid-point of expected service temperature range

Movement

FNB = >100% total
FXE = >100% total

Color

Aluminum standard (optional stainless-steel – Consult Sika Emseal)

Uses

Availability & Price

  • Available for shipment internationally.
  • Prices are available from local distributors or representatives and/or directly from the manufacturer.
  • The product range is continually being updated, and accordingly EMSEAL® reserves the right to modify or withdraw any product without prior notice.
