Wabo®WeatherSeam (WSC, WSE, WSW)

Seismic Building Expansion Joint System for Wide Exterior and Interior Wall and Ceiling Joints - Thermal and Multidirectional Seismic Movement Capable

Sika Emseal now supports and sells all Wabo® Commercial Building Expansion Joints

A seismic building expansion joint system for interior and exterior walls and ceilings, Wabo®WeatherSeam is weather resistant and installed flushed with the finished substrates. Provided in joint widths up to 24″ wide to accommodate seismic joint openings.

WeatherSeam is easily installed and accommodates thermal and multidirectional seismic movement.

Attractive in design the colorable elastomeric seals cover the supporting aluminum frame resulting in no-to-low exposed metal (varies based on product size).

Secondary moisture barriers are available to inhibit the passage of exterior moisture and condensation from entering the wall cavity.

Specify Emshield® WFR for the added life safety assurance of built-in UL 2079 fire rating (Consult Sika Emseal for available sizes).

Specify Seismic Colorseal® for the added benefit of a watertight system (Consult Sika Emseal for available sizes).

Wabo®WeatherSeam (WSC, WSE, WSW)

Seismic Building Expansion Joint System for Wide Exterior and Interior Wall and Ceiling Joints - Thermal and Multidirectional Seismic Movement Capable

Wabo®WeatherSeam (WSW) exterior seismic wall expansion joint with weather barrier By Sika Emseal
Wabo®WeatherSeam WSW exterior seismic wall expansion joint recessed mounted By Sika Emseal
Wabo®WeatherSeam WSC exterior seismic wall expansion joint recessed mounted By Sika Emseal
Wabo®WeatherSeam WSC exterior seismic wall expansion joint recessed flush mounted By Sika Emseal
Wabo®WeatherSeam WSC interior seismic wall expansion joint recessed flush mounted By Sika Emseal
Wabo®WeatherSeam WSC interior seismic wall expansion joint recessed flush mounted By Sika Emseal
Wabo WeatherSeam (WSE) seismic building expansion joint system for interior walls CAD Detail by Sika Emseal
Wabo WeatherSeam (WSC) seismic building expansion joint system for interior walls CAD Detail by Sika Emseal

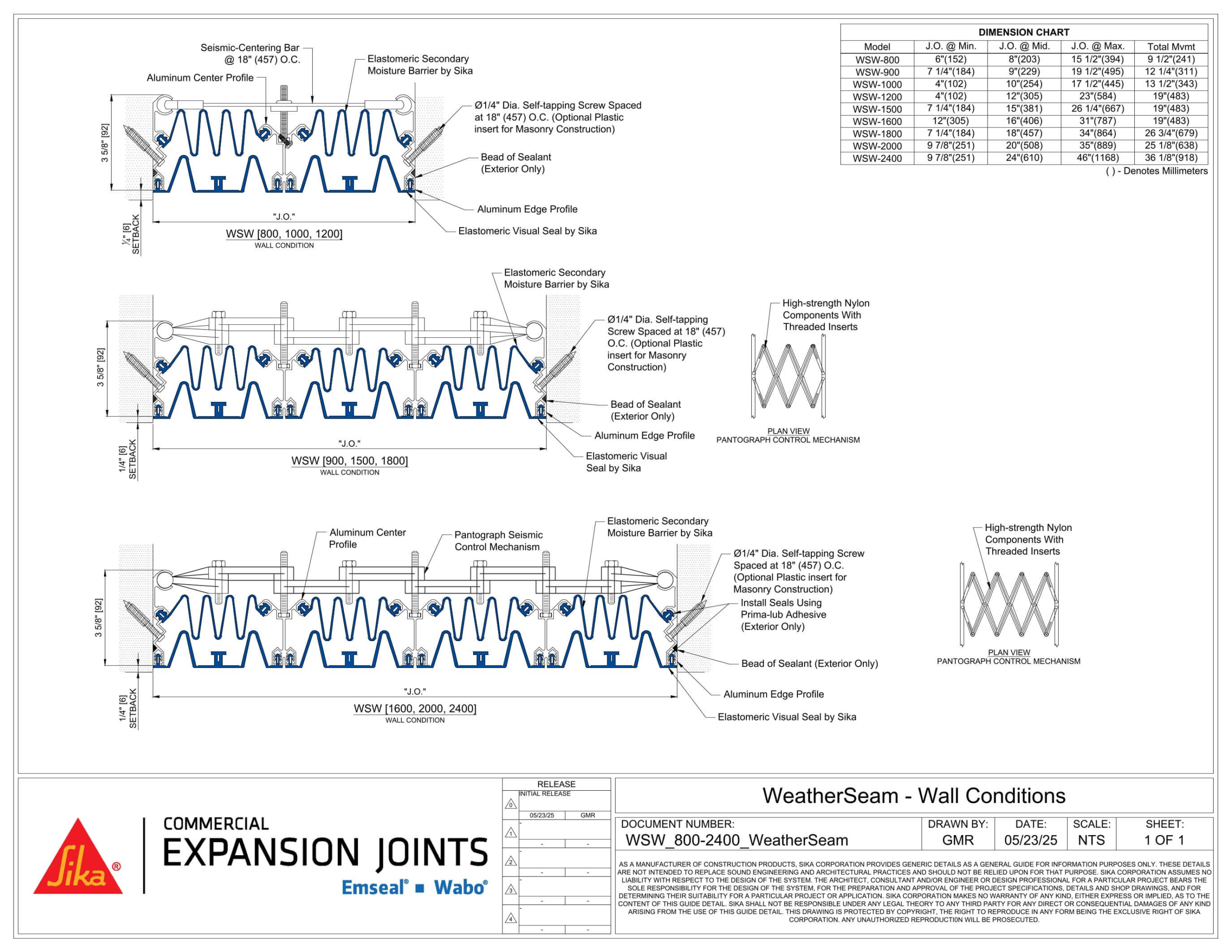

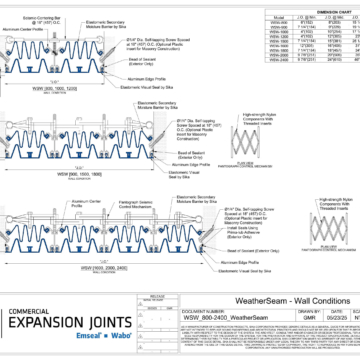

Wabo WeatherSeam (WSW) seismic building expansion joint cover system for exterior walls CAD Detail by Sika Emseal
1 of 9

Wabo®WeatherSeam (WSW) is a seismic building expansion joint system for exterior walls and available up to 24" wide joint openings.

Wabo WeatherSeam (WSE) seismic building expansion joint system for interior walls CAD Detail by Sika Emseal

Wabo WeatherSeam (WSC) seismic building expansion joint system for interior walls CAD Detail by Sika Emseal

Wabo WeatherSeam (WSW) seismic building expansion joint cover system for exterior walls CAD Detail by Sika Emseal

Features

Sizes

WSW (Exterior) = 10″ – 24″ (50mm – 610mm)

WSE/WSC (Interior) = 2″ – 6″ (50mm – 150mm)

For additional sizes, consult Sika Emseal.

Above are mean joint sizes at mid-point of expected service temperature range

Movement

>100% total

Color

Elastomeric seals in black, gray, white, and beige – View Colorchart here.

Uses

Availability & Price

  • Available for shipment internationally.
  • Prices are available from local distributors or representatives and/or directly from the manufacturer.
  • The product range is continually being updated, and accordingly EMSEAL® reserves the right to modify or withdraw any product without prior notice.
