CAD Library: Emshield® DFR-FP

Joint Sizes with * have 3D .DWF files available.

BIM files are also available for these products in our BIM Library.

Please consult EMSEAL for updates to product configuration and other assembly components.

Filter By:
Expansion Joint Details: DFR-FP Deck-to-Deck with Emcrete Fire-rated Expansion Joint EMSEAL

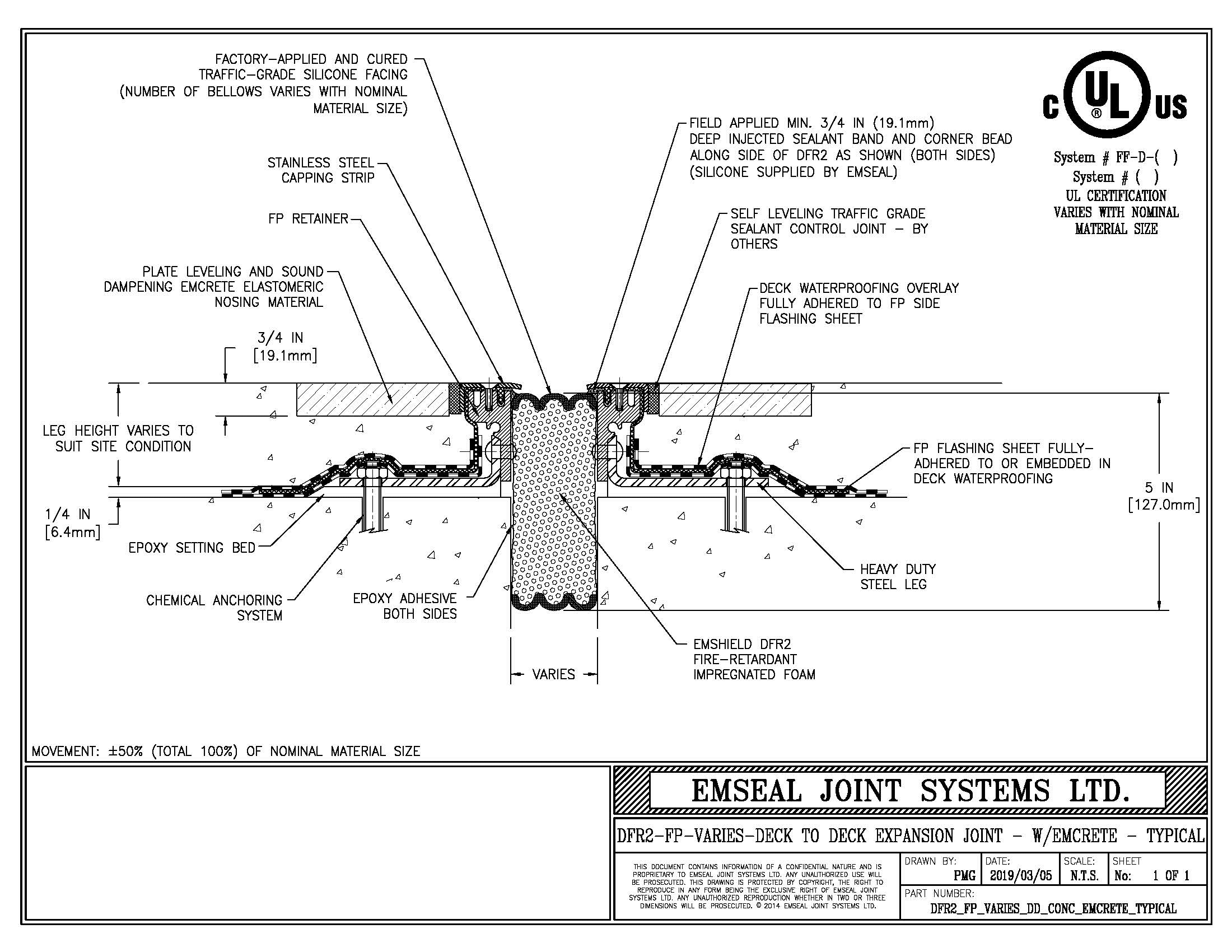

DFR-FP System 2-Hour Fire-Rated Deck-to-Deck Blockout with Emcrete (Typical)

Download DWG Download PDF
Expansion Joint Detail: SJS-FP-FR2 split slab to solid slab fire-rated Expansion Joint

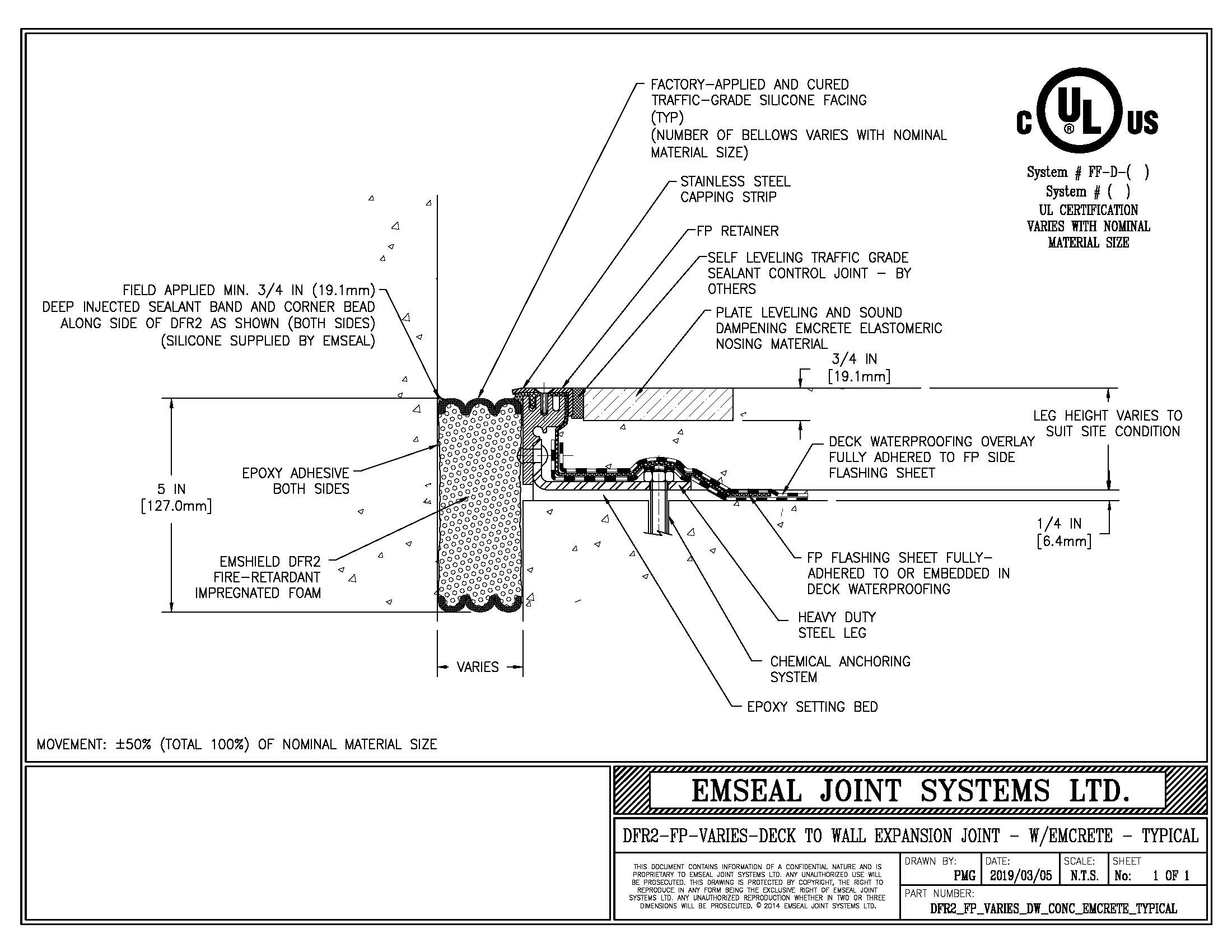

DFR-FP System 2-Hour Fire-Rated Deck-to-Wall Blockout with Emcrete (Typical)

Download DWG Download PDF
Expansion Joint Details: DFR-FP U-90 Downturn Fire-rated Expansion Joint EMSEAL

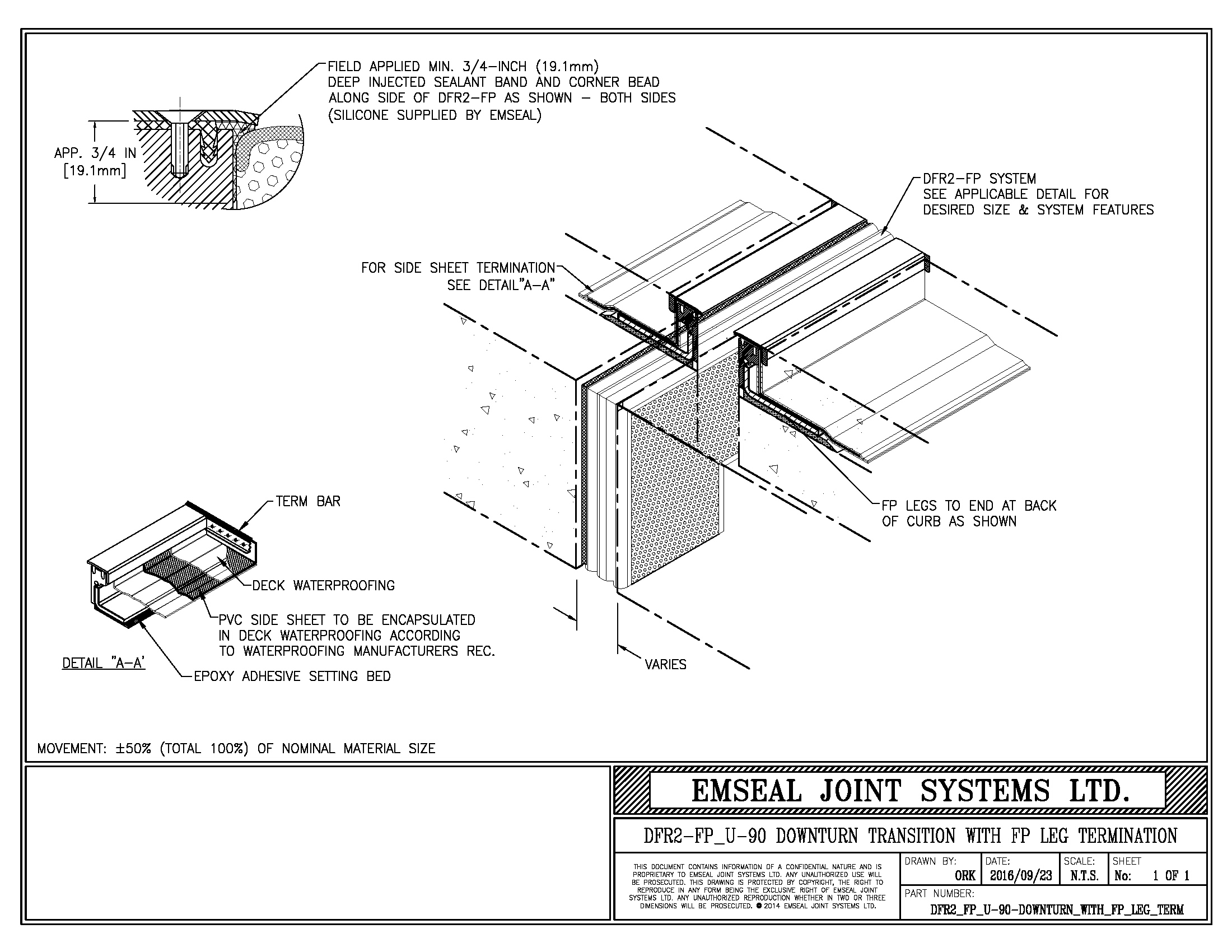

DFR-FP System 2-Hour Fire-Rated Downturn Universal-90 (Typical)

Download DWG Download PDF
Expansion Joint Details: DFR-FP U-90 Upturn Fire-rated Expansion Joint EMSEAL

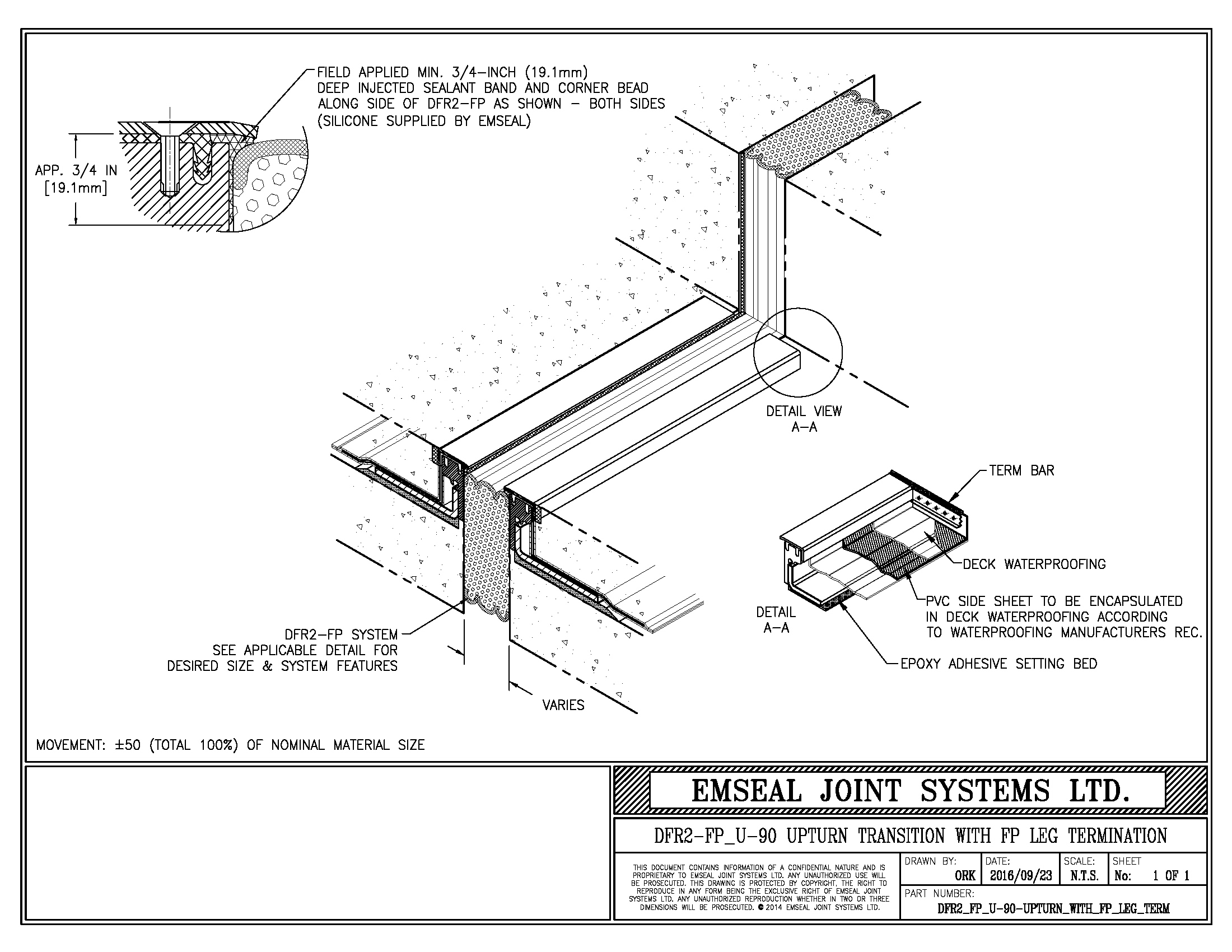

DFR-FP System 2-Hour Fire-Rated Upturn Universal-90 with 45 degree Termination (Typical)

Download DWG Download PDF
Expansion Joint Details: DFR-FP U-90 Downturn Fire-rated Expansion Joint EMSEAL

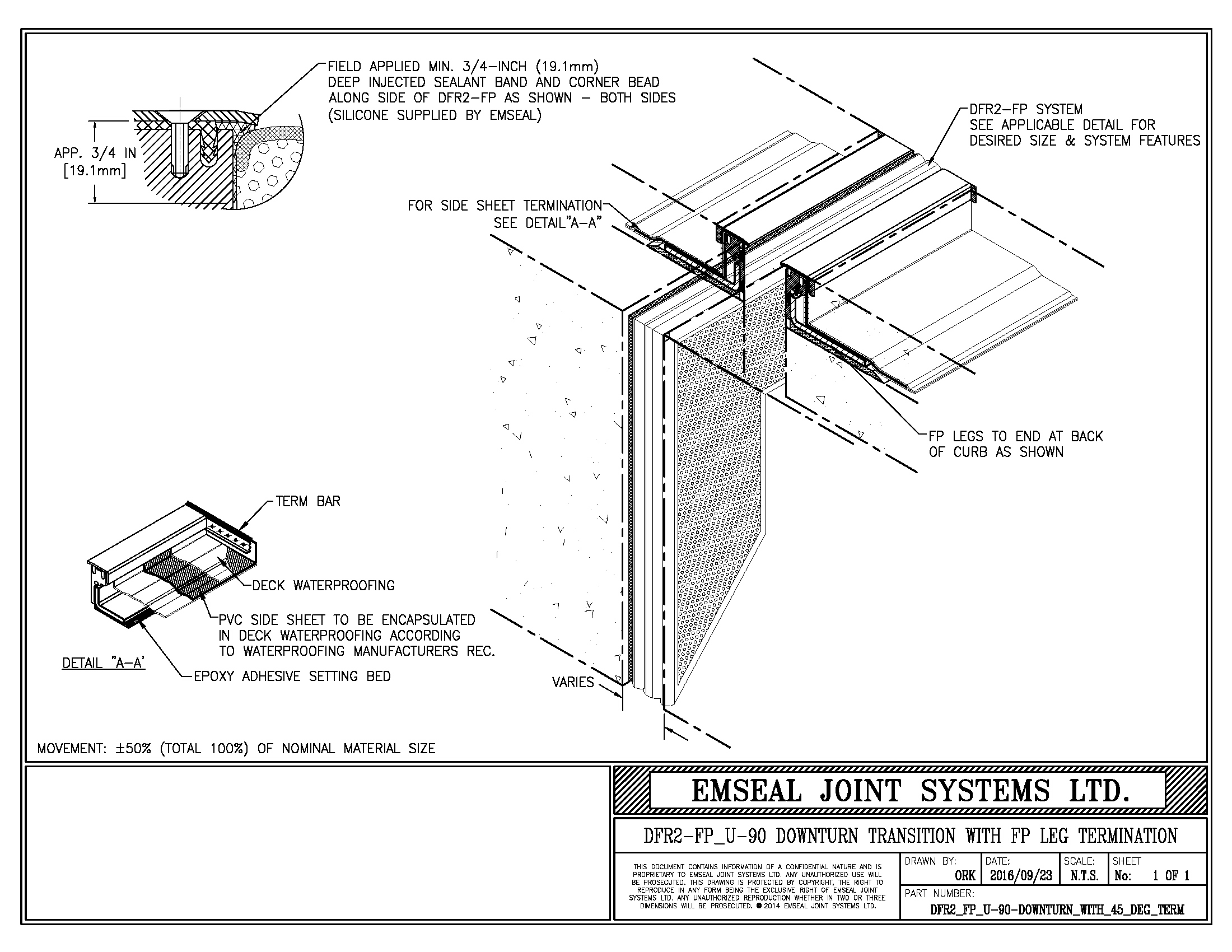

DFR-FP System 2-Hour Fire-Rated Downturn Universal-90 with 45 degree Termination (Typical)

Download DWG Download PDF
Expansion Joint Details: DFR-FP U-90 Upturn Fire-rated Expansion Joint EMSEAL

DFR-FP System 2-Hour Fire-Rated Upturn Universal-90 (Typical)

Download DWG Download PDF
Expansion Joint Details: DFR-FP Horizontal Transition Fire-rated Expansion Joint EMSEAL

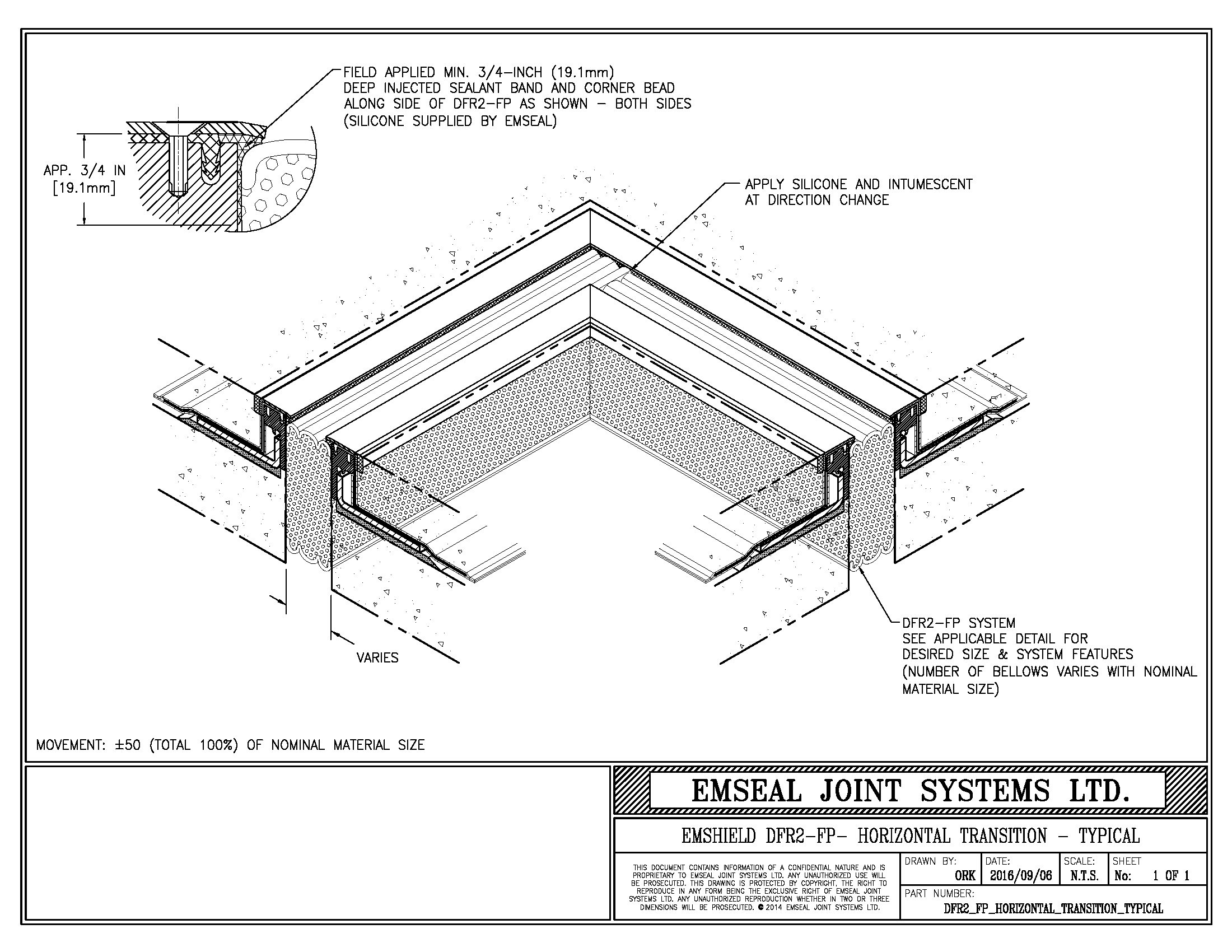

DFR-FP System 2-Hour Fire-Rated Filed Fabricated Horizontal Transition (Typical)

Download DWG Download PDF
Expansion Joint Detail: SJS-FP-FR2 split slab to solid slab fire-rated Expansion Joint

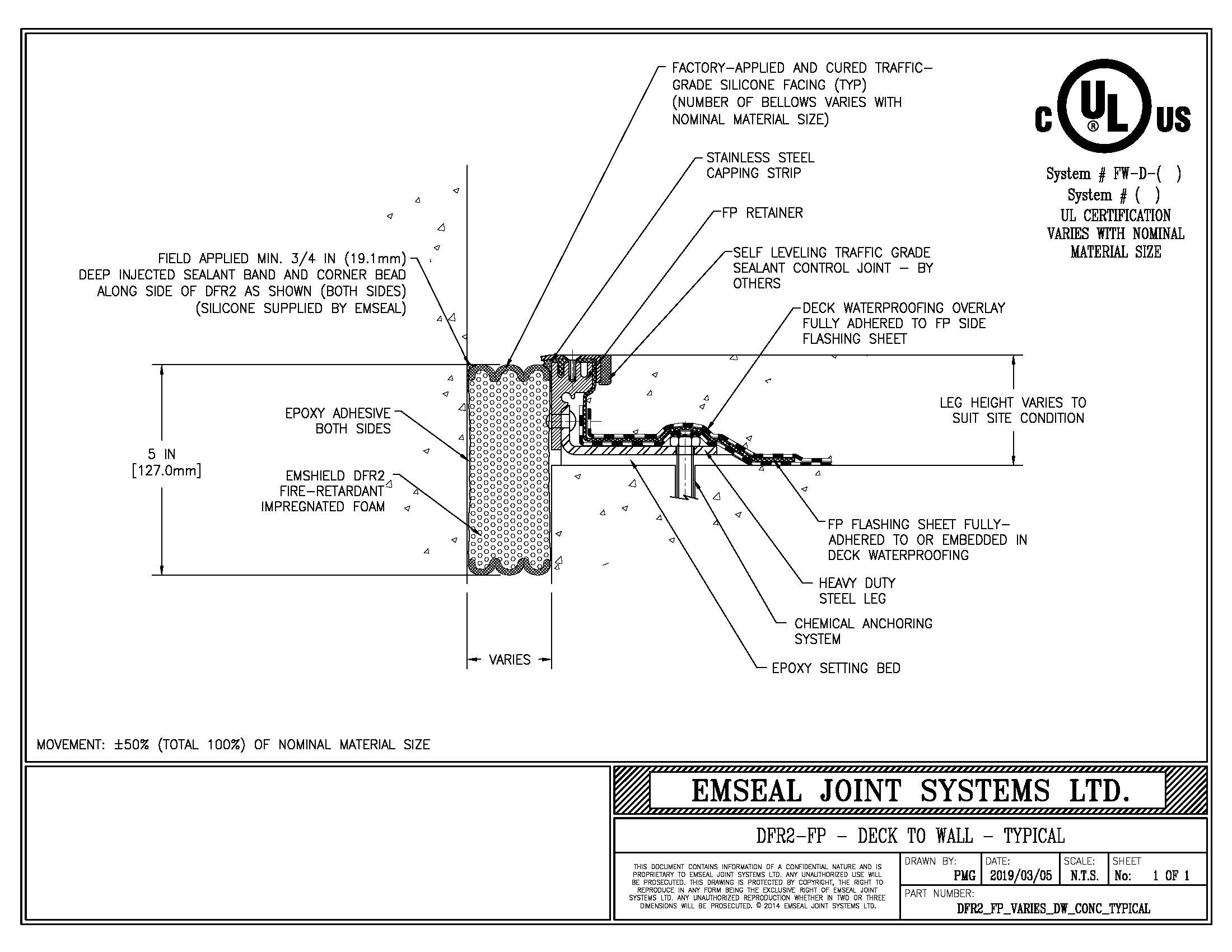

DFR-FP System 2-Hour Fire-Rated Deck-to-Wall Split Slab (Typical)

Download DWG Download PDF
Expansion Joint Details: DFR-FP Deck-to-Deck Fire-rated Expansion Joint EMSEAL

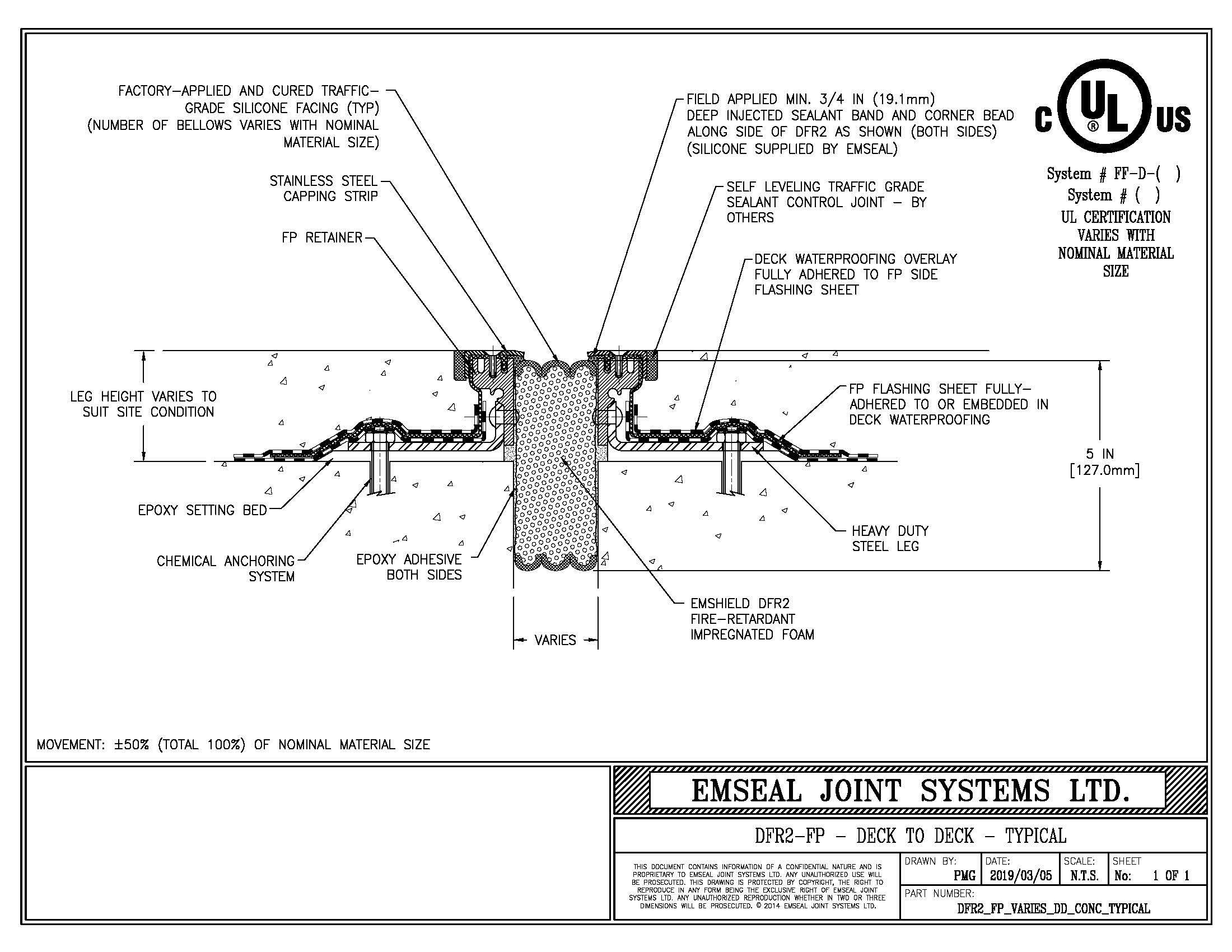

DFR-FP System 2-Hour Fire-Rated Deck-to-Deck Split Slab (Typical)

Download DWG Download PDF

Download DWF Viewer Here

NOTE: The CAD drawings on this site are generic and/or were created to treat project-specific conditions. They may or may not be suitable for your specific project or application. Please consult EMSEAL on the use of any material for any application. Thank you.

The following collection of details is being continuously updated and does not cover all possible conditions. If you don’t see something that closely suits your application, please contact us.

These drawings are intended for use during the specification of EMSEAL products in legitimate Architectural, Engineering and Construction applications. Any misuse or duplication of these copyrighted details for any other purpose, will be vigorously prosecuted.
