CAD Library: DSM-FP

Joint Sizes with * have 3D .DWF files available.

Plaza deck to wall expansion joint detail DSM-FP Emseal

DSM-FP System Upturn Transition to Colorseal Split Slab (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

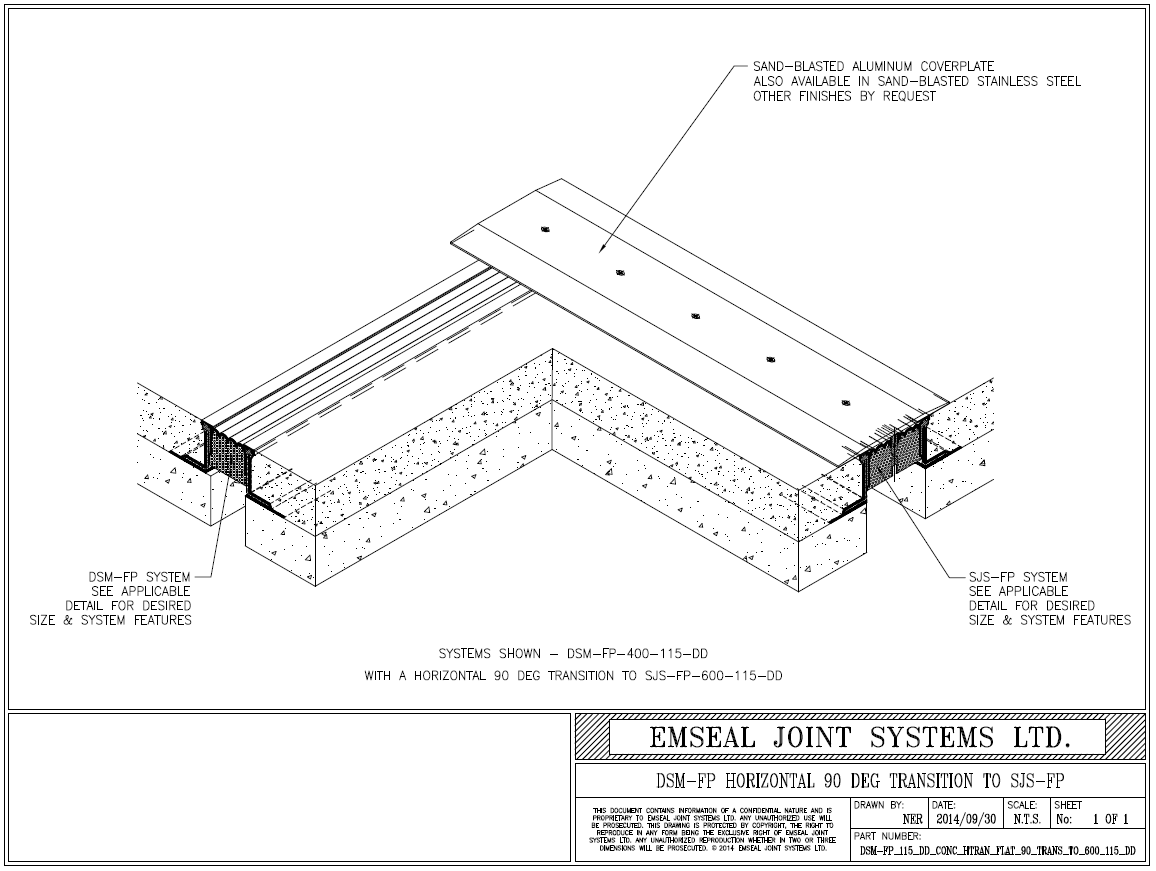

DSM-FP System 90-Degree Transition to SJS-FP Split Slab (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

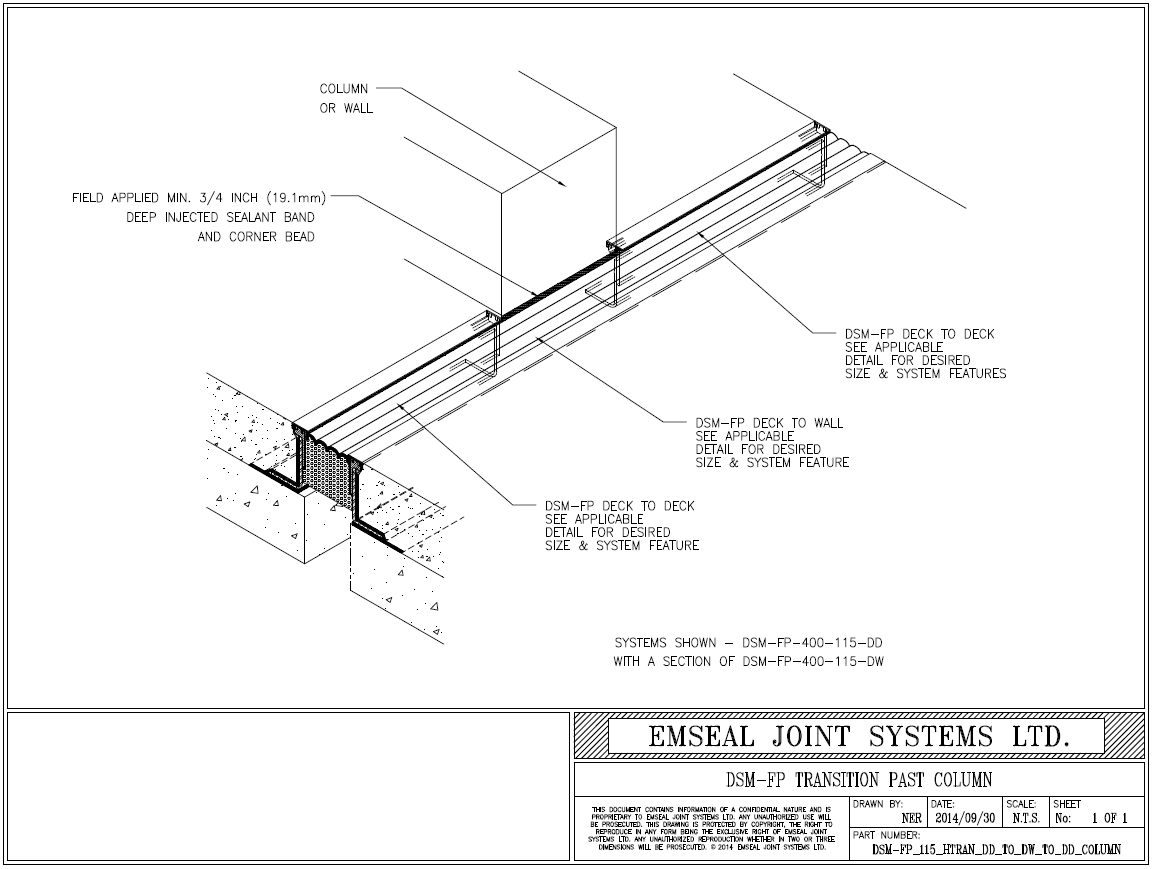

DSM-FP System Transition Past a Column Split Slab (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

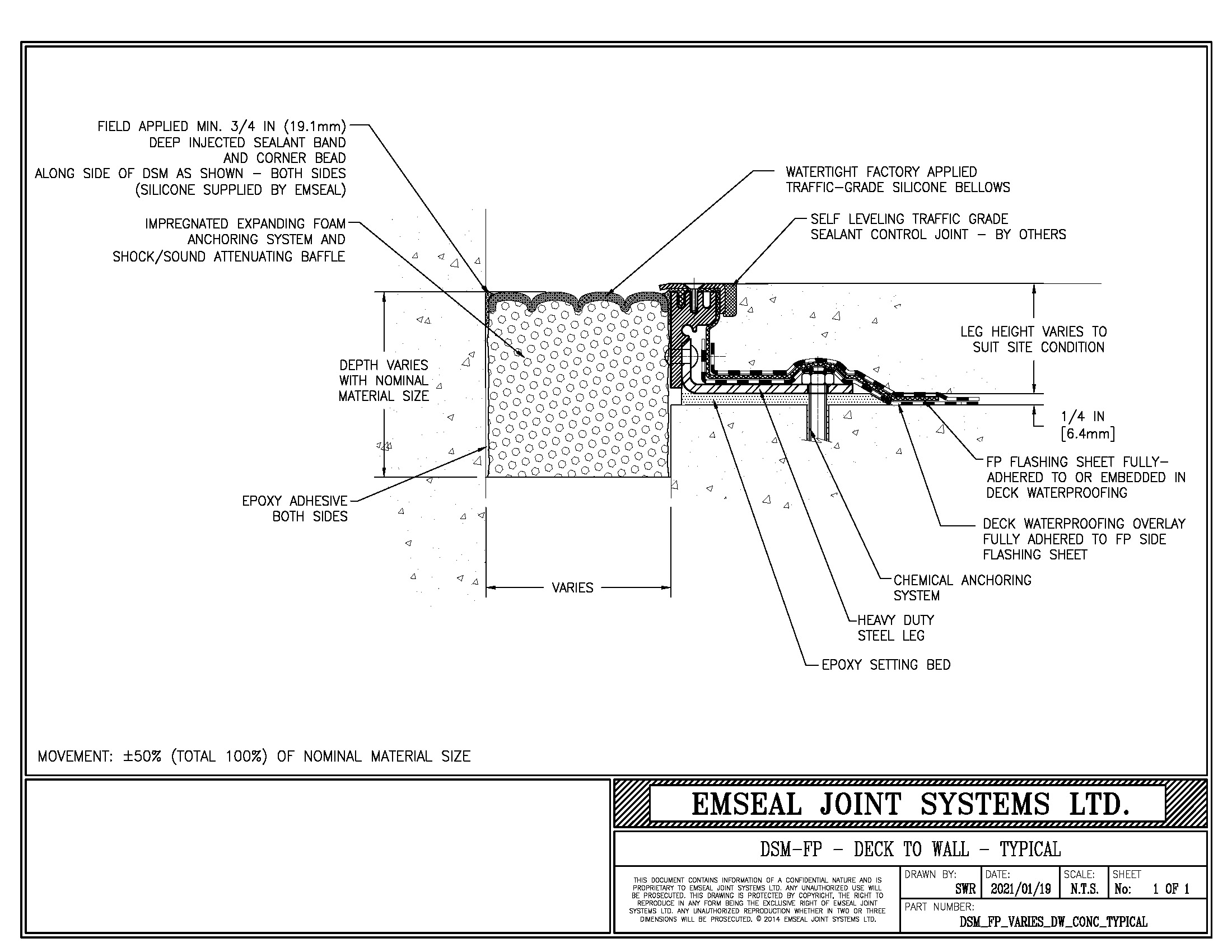

DSM-FP System Deck-to-Wall Wall to Split Slab (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

DSM-FP_Deck to deck_concrete_split_slab_on_one_side_typical

DSM-FP System Deck-to-Deck Solid Slab to Split Slab (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

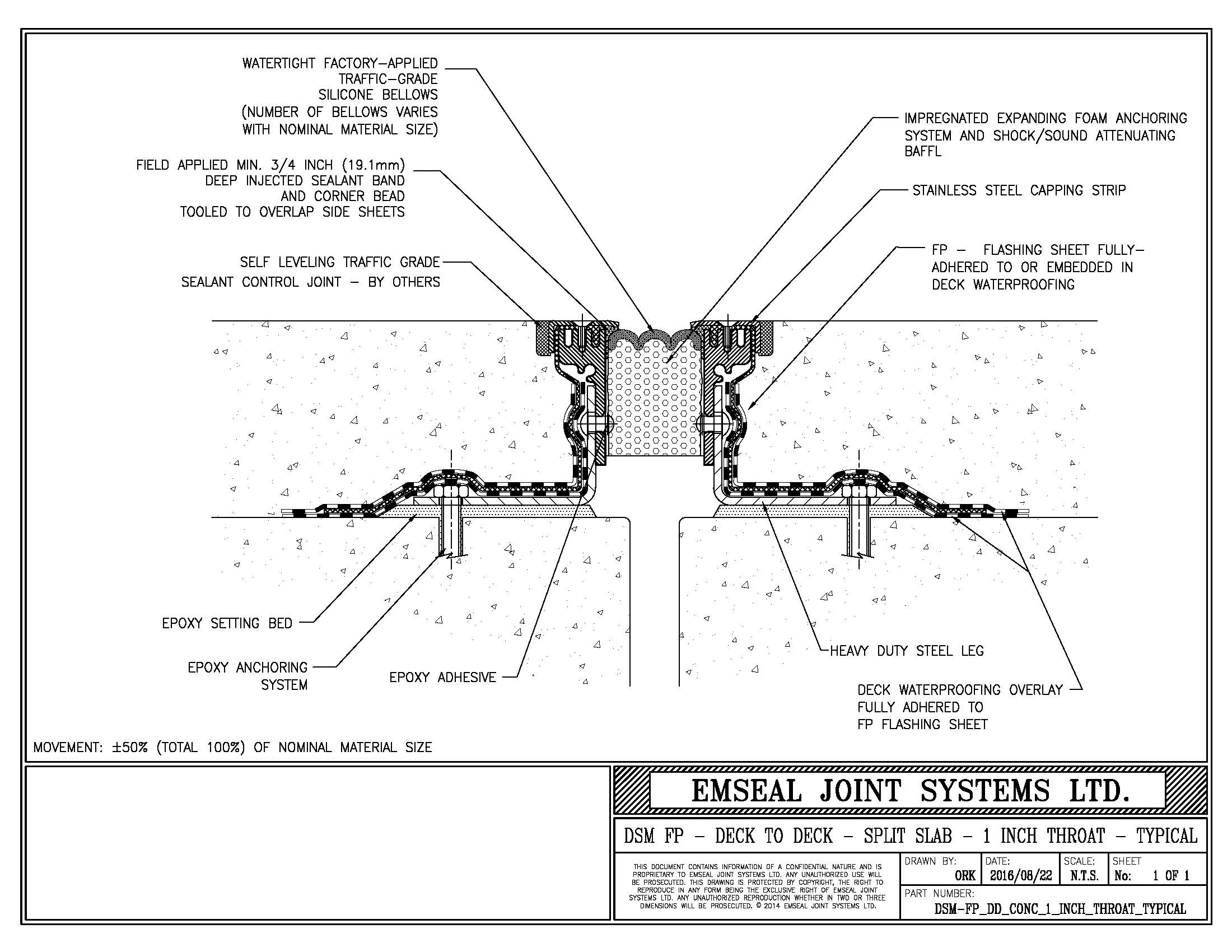

DSM-FP_Deck to deck_concrete_1_inch_throat_typical

DSM-FP System Deck-to-Deck Split Slab with 1-inch Throat (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

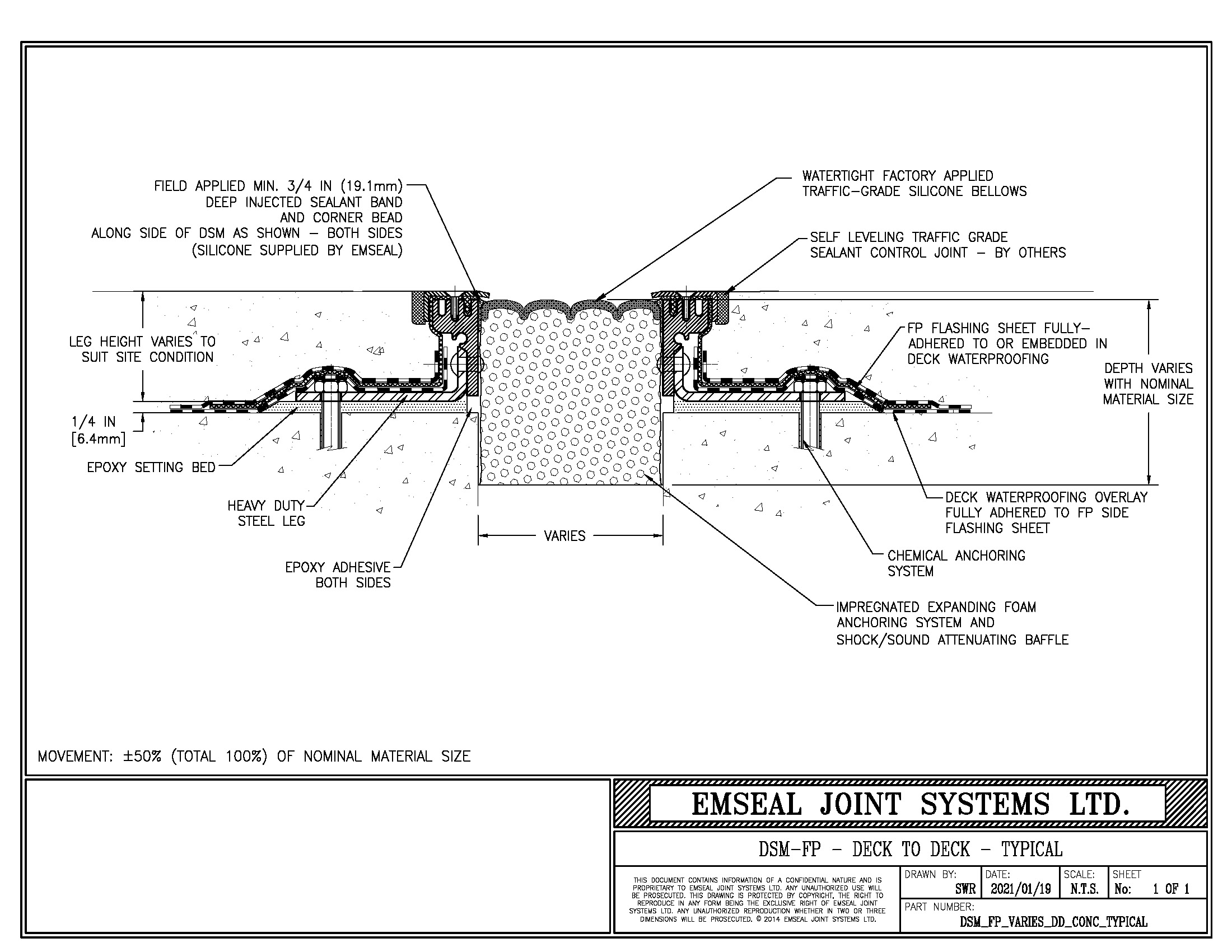

DSM-FP System Deck-to-Deck Split Slab (Typical)

Download DWG Download PDF

For additional CAD sizes not listed, please contact EMSEAL.

Download DWF Viewer Here

NOTE: The CAD drawings on this site are generic and/or were created to treat project-specific conditions. They may or may not be suitable for your specific project or application. Please consult EMSEAL on the use of any material for any application. Thank you.

The following collection of details is being continuously updated and does not cover all possible conditions. If you don’t see something that closely suits your application, please contact us.

These drawings are intended for use during the specification of EMSEAL products in legitimate Architectural, Engineering and Construction applications. Any misuse or duplication of these copyrighted details for any other purpose, will be vigorously prosecuted.
