CAD Library: Emshield DFR / WFR CE

Joint Sizes with * have 3D .DWF files available.

BIM files are also available for these products in our BIM Library.

Please consult EMSEAL for updates to product configuration and other assembly components.

Filter By:

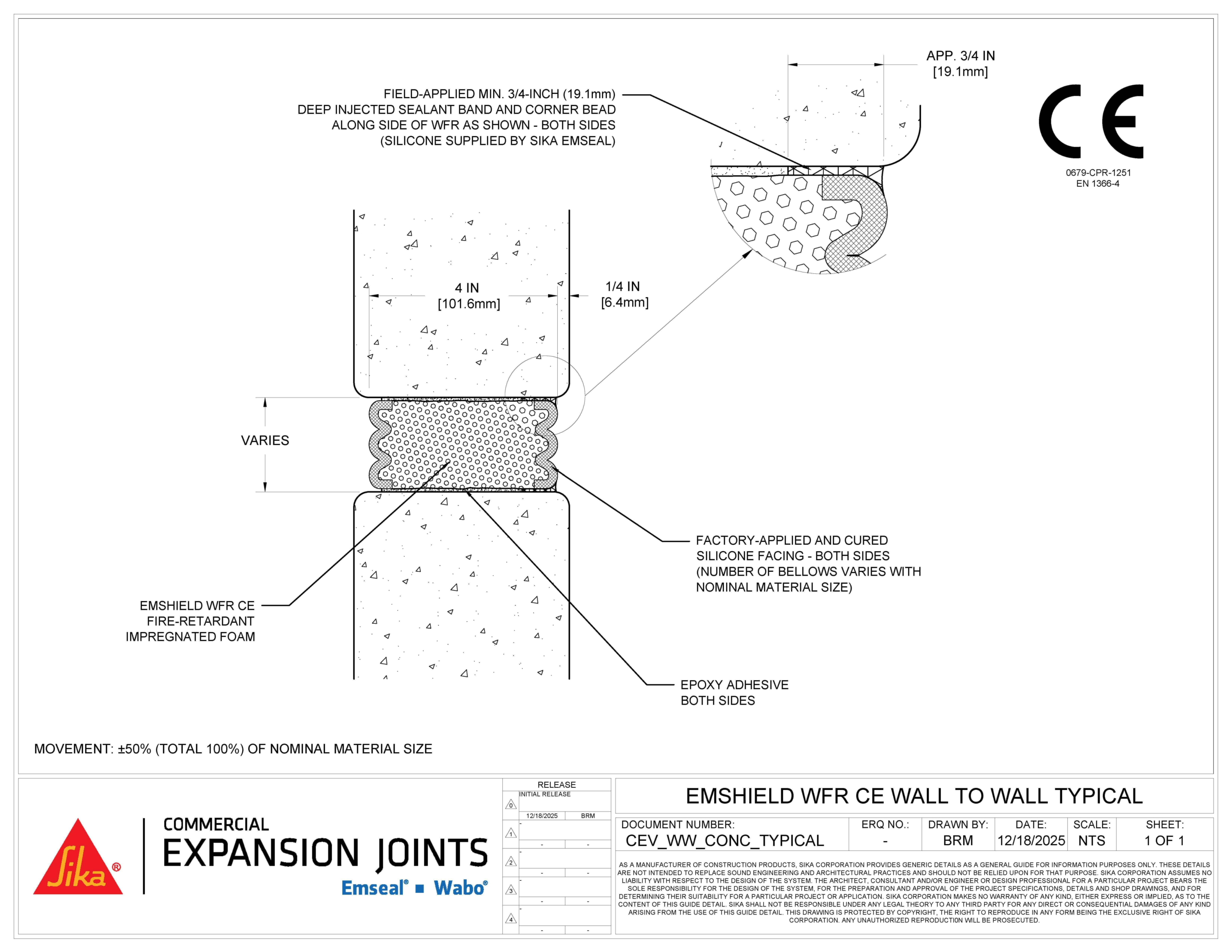

CAD detail showing Sika Emseal Emshield WFR CE Fire Resistant movement joint in section, including silicone-faced foam seal compressed between vertical wall concrete substrate faces. Product provides watertight, airtight and smoke seal with up to 4-hour fire resistance and ±50 % movement capacity

WFR CE 4-Hour Fire-Rated Wall-to-Wall (Typical)

Download DWG Download PDF

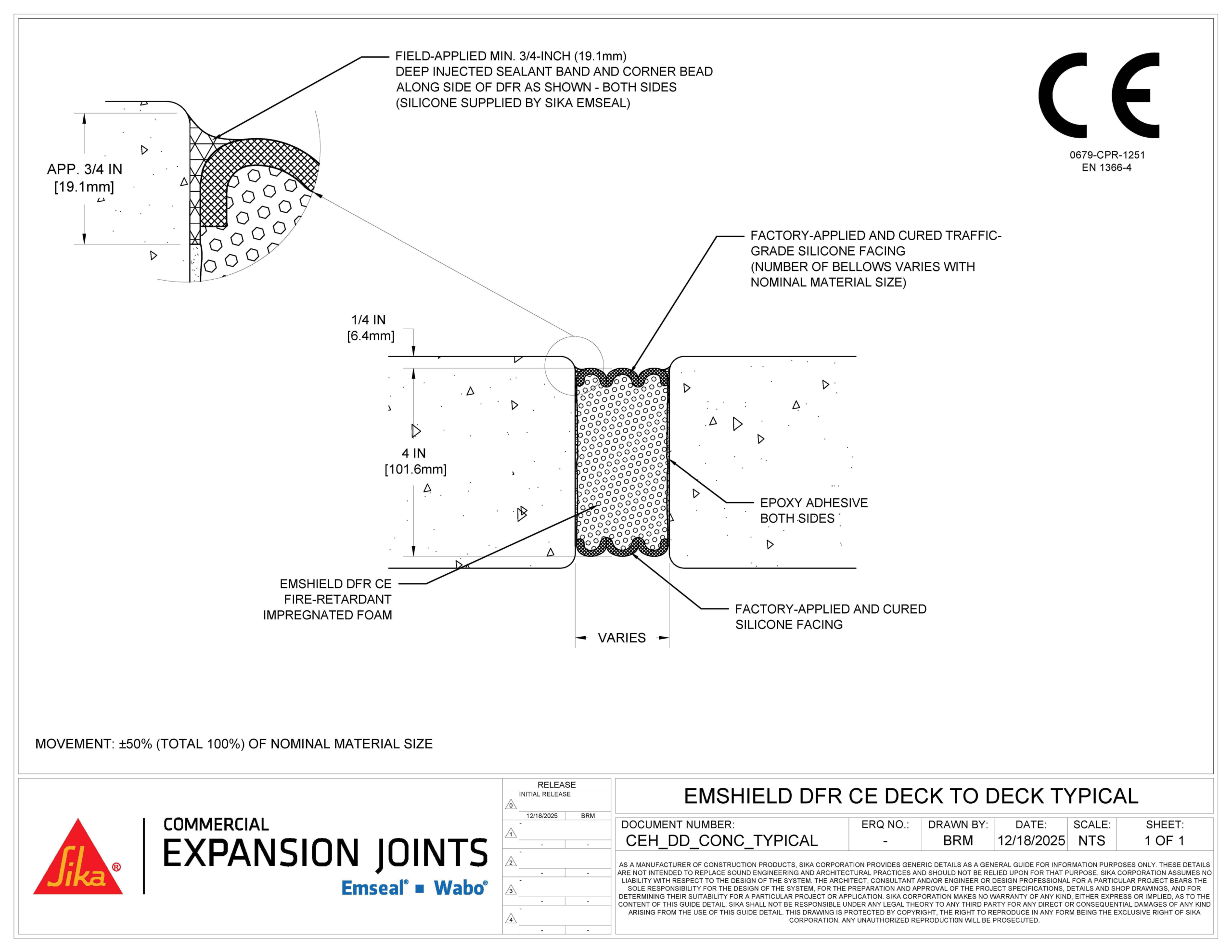

CAD detail showing Sika Emseal Emshield DFR CE movement joint in section, including silicone-faced foam seal compressed between horizontal deck concrete substrate faces. Product provides watertight, airtight and smoke seal with up to 4-hour fire resistance and ±50 % movement capacity

DFR CE 4-Hour Fire-Rated Deck-to-Deck (Typical)

Download DWG Download PDF

Download DWF Viewer Here

NOTE: The CAD drawings on this site are generic and/or were created to treat project-specific conditions. They may or may not be suitable for your specific project or application. Please consult EMSEAL on the use of any material for any application. Thank you.

The following collection of details is being continuously updated and does not cover all possible conditions. If you don’t see something that closely suits your application, please contact us.

These drawings are intended for use during the specification of EMSEAL products in legitimate Architectural, Engineering and Construction applications. Any misuse or duplication of these copyrighted details for any other purpose, will be vigorously prosecuted.
