CAD Library: Emshield® DFR3

Joint Sizes with * have 3D .DWF files available.

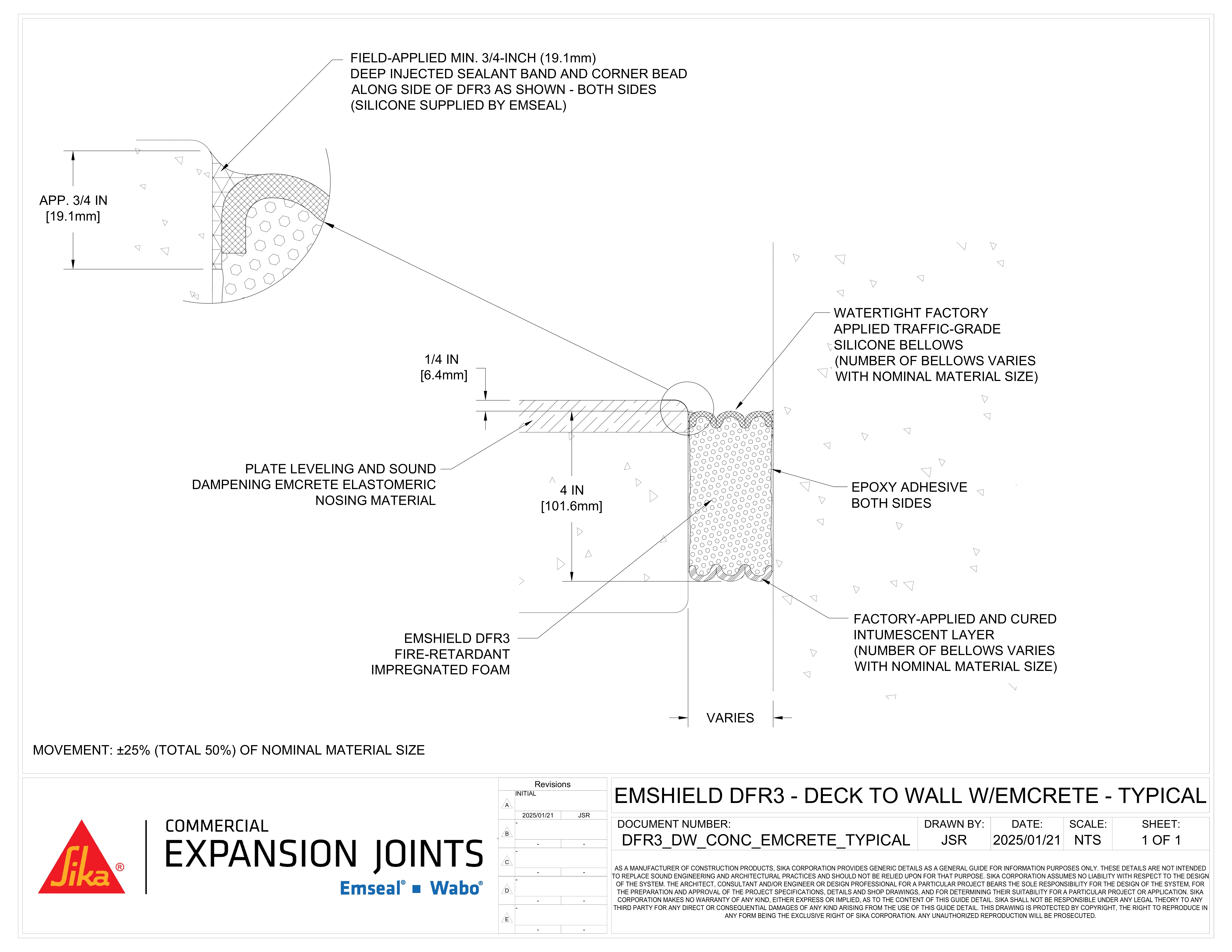

DFR3_DW_CONC_EMCRETE_TYPICAL Emshield DFR3 Firerated Expansion Joint Deck to wall concrete emcrete typical

Emshield DFR3 System 3-Hour Fire Rated Deck-to-Wall Blockout with Emcrete (Typical)

Download DWG Download PDF

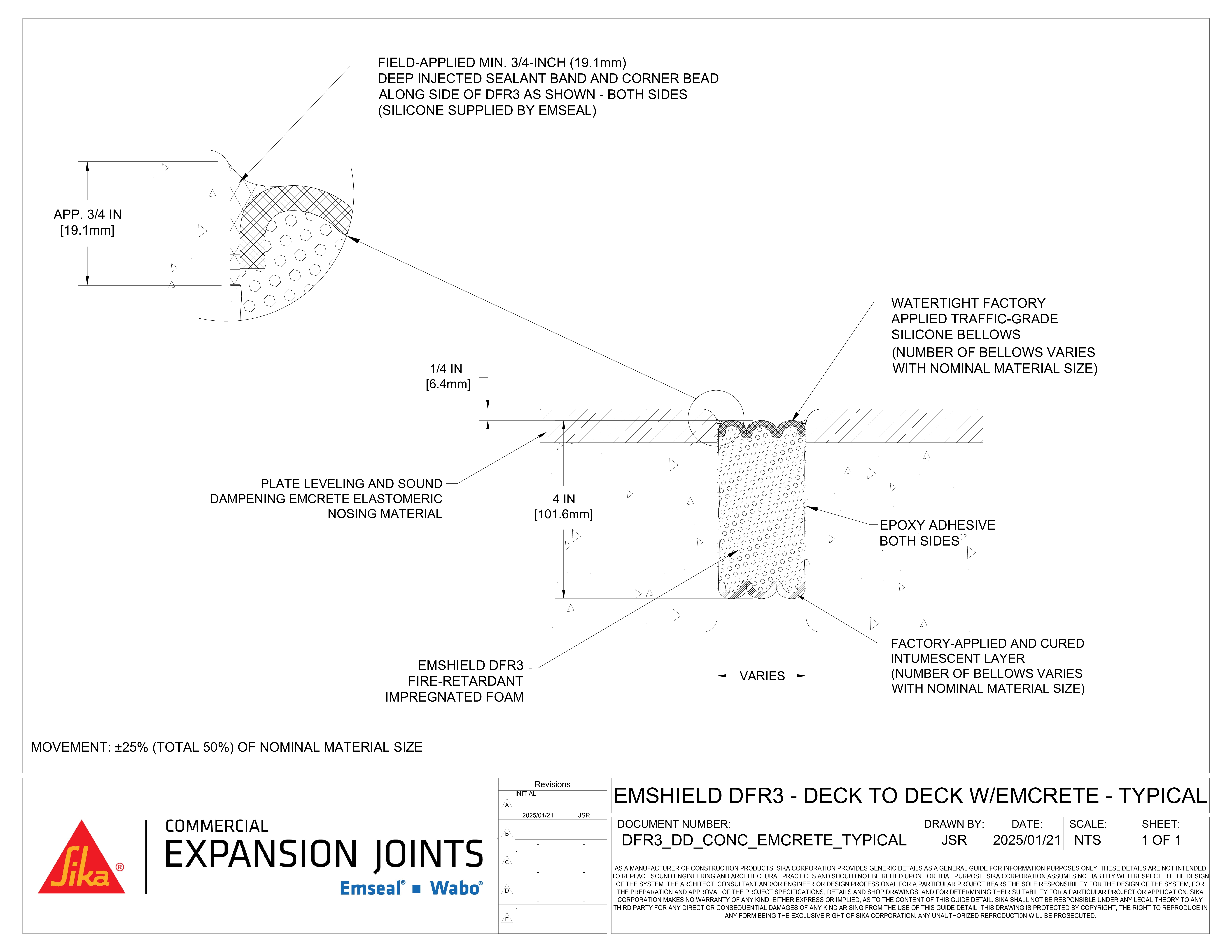

Emshield DFR3 Firerated Expansion Joint_Deck to deck_concrete_emcrete_typical

Emshield DFR3 System 3-Hour Fire Rated Deck-to-Deck Blockout with Emcrete (Typical)

Download DWG Download PDF

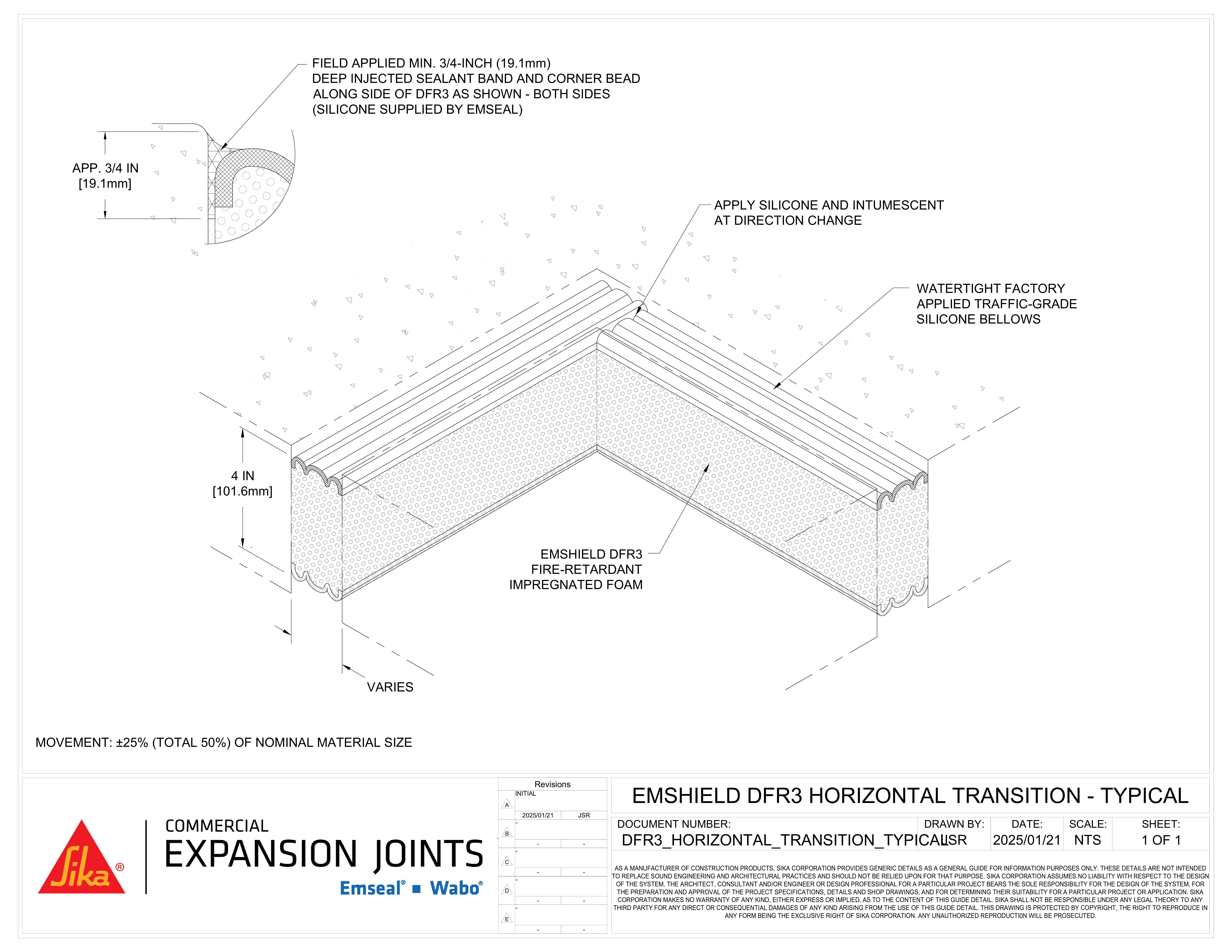

Emshield DFR3 Firerated Expansion Joint_horizontal_transition_typical

Emshield DFR3 3-Hour Fire-Rated Field Fabricated Horizontal Transition (Typical)

Download DWG Download PDF

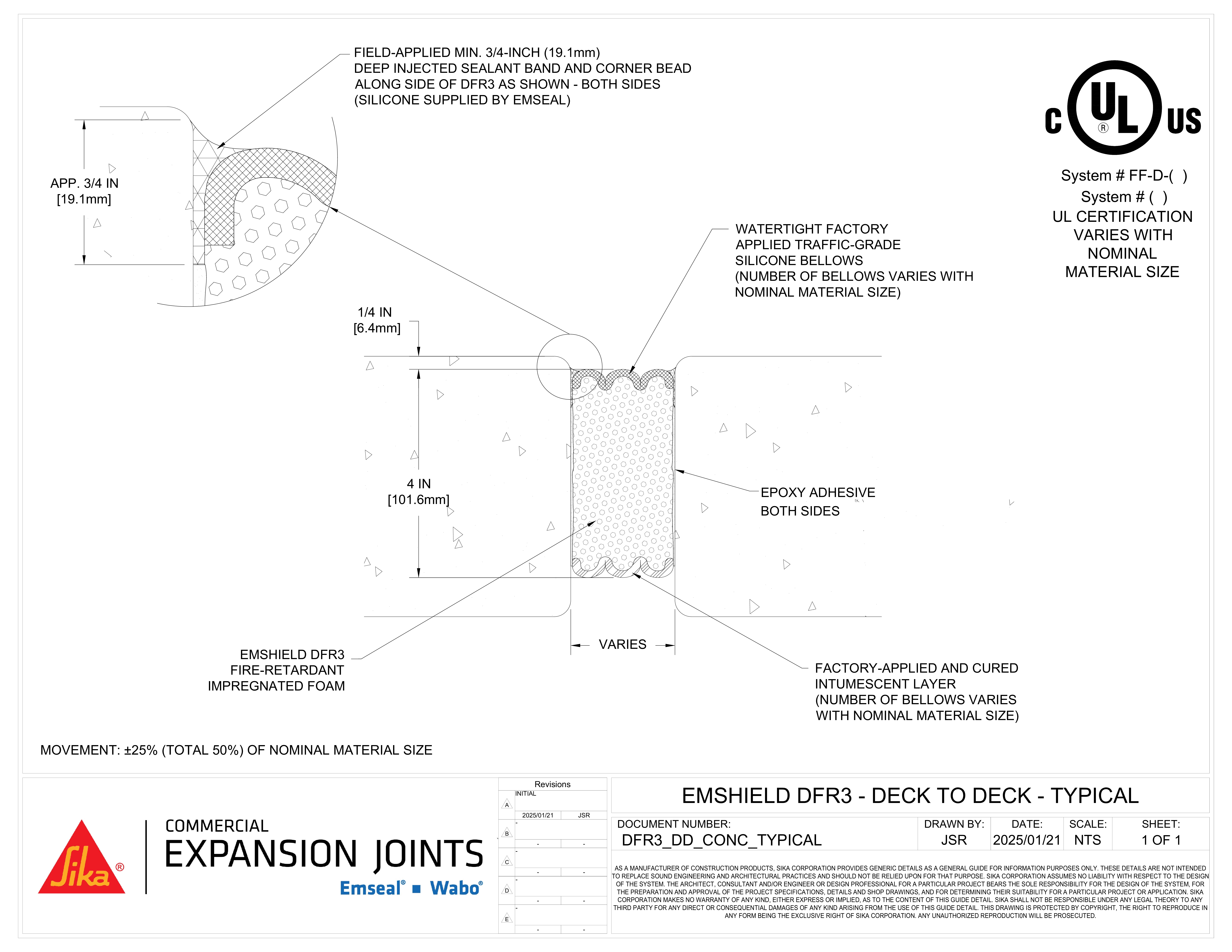

DFR3_DD_CONC_TYPICAL Emshield DFR3 Fire Rated Deck Expansion Joint Deck to Deck Typical

Emshield DFR3 3-Hour Fire-Rated Deck-to-Deck (Typical)

Download DWG Download PDF Revit at bimobject.com

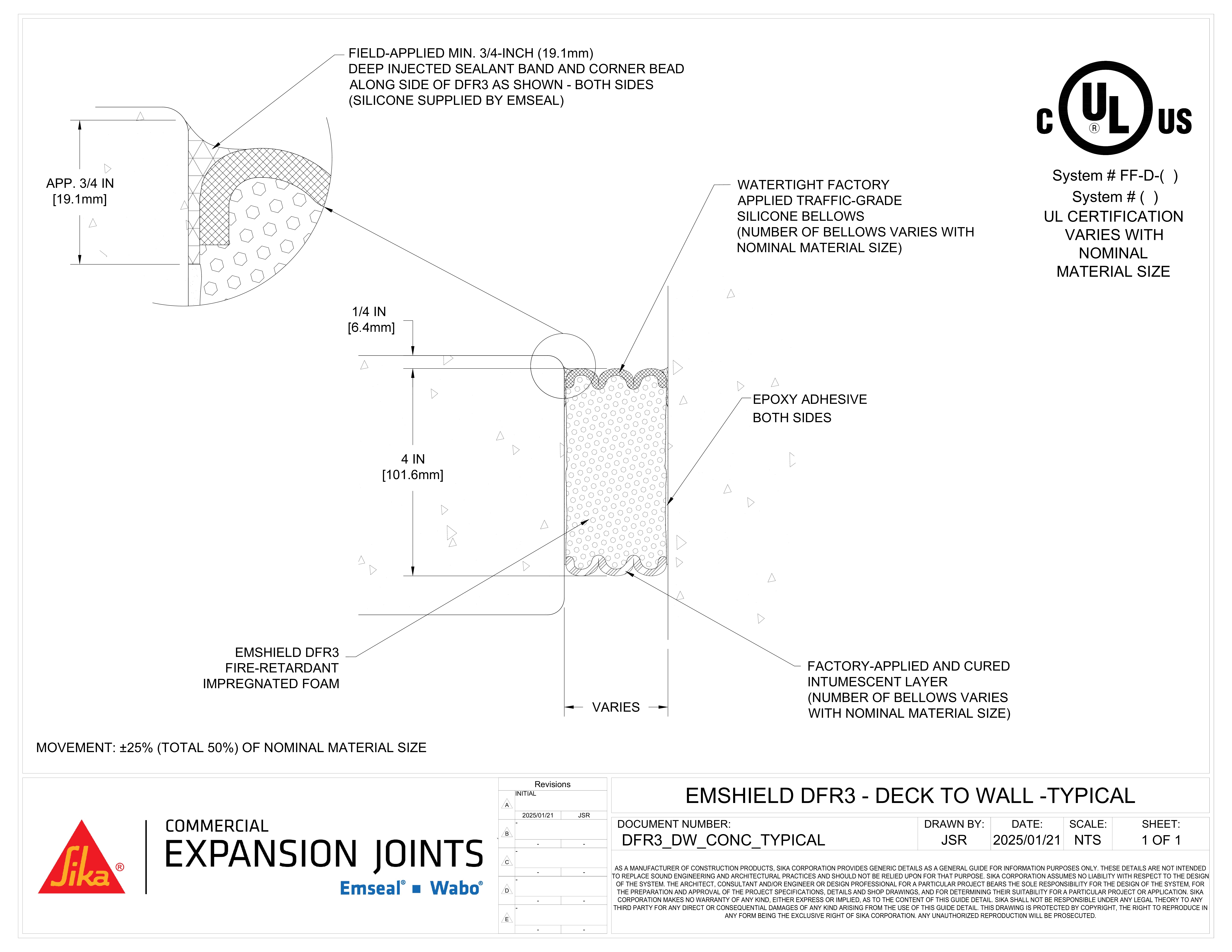

Expansion Joint Detail: Emshield DFR3 Deck to Wall EMSEAL

Emshield DFR3 3-Hour Fire-Rated Deck-to-Wall (Typical)

Download DWG Download PDF

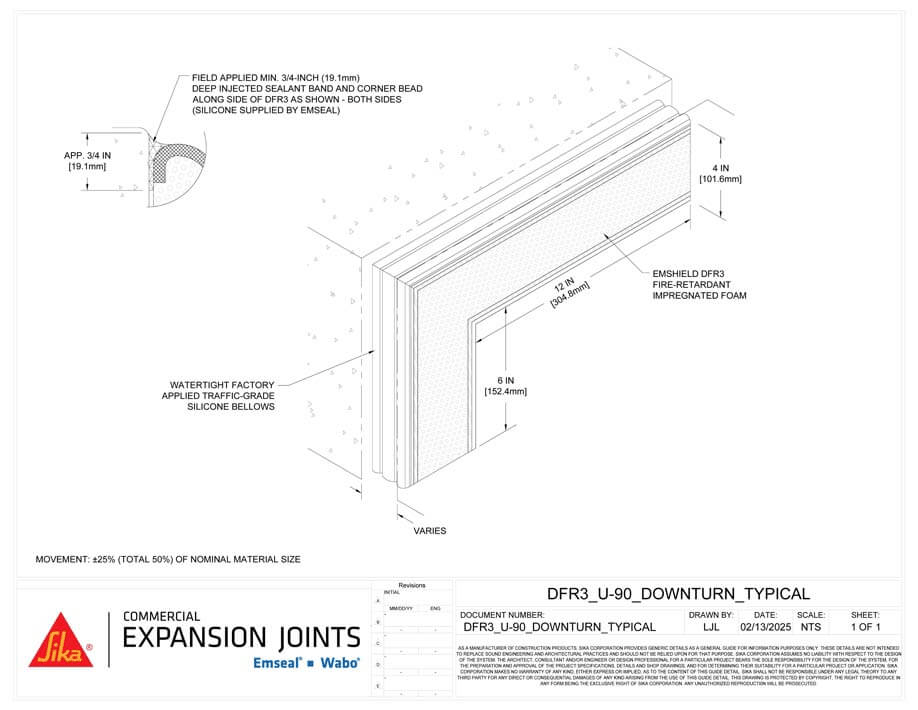

Expansion Joint Detail: Emshield DFR3 Vertical Plane Inside Universal 90 with 45 Degree EMSEAL

Emshield DFR3 3-Hour Fire-Rated Vertical Universal-90 Inside with 45 degree Termination (Typical)

Download DWG Download PDF

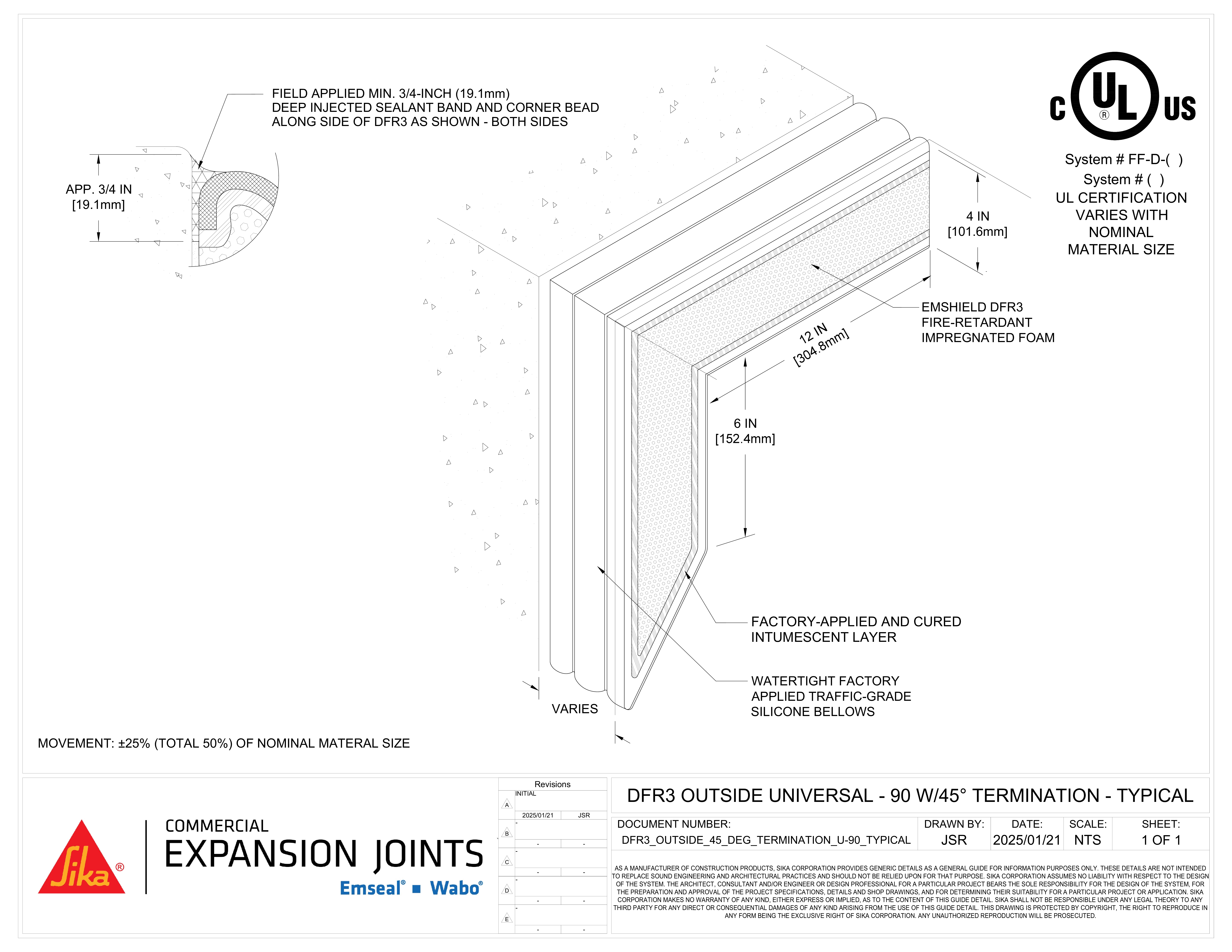

Expansion Joint Detail: Emshield DFR3 Vertical Plane Universal 90 with 45 Degree EMSEAL

Emshield DFR3 3-Hour Fire-Rated Vertical Universal-90 Outside with 45 degree Termination (Typical)

Download DWG Download PDF

Download DWF Viewer Here

NOTE: The CAD drawings on this site are generic and/or were created to treat project-specific conditions. They may or may not be suitable for your specific project or application. Please consult EMSEAL on the use of any material for any application. Thank you.

The following collection of details is being continuously updated and does not cover all possible conditions. If you don’t see something that closely suits your application, please contact us.

These drawings are intended for use during the specification of EMSEAL products in legitimate Architectural, Engineering and Construction applications. Any misuse or duplication of these copyrighted details for any other purpose, will be vigorously prosecuted.
