Migutec KF 250/KFE 251

Quick-Install, Aluminum Wall Joint Cover

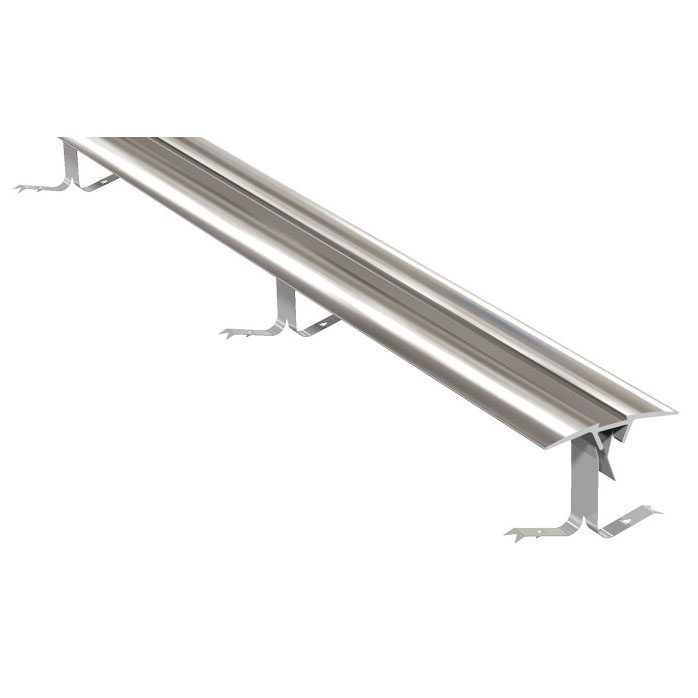

Aluminum cover profile with stainless steel spring clips
very long durability

Secure and permanent fixing
using stainless steel spring clips

Quick and easy installation

Migutec KF 250/KFE 251

Quick-Install, Aluminum Wall Joint Cover

Features

Production length: 9.84‘ (3 m)

Sizes

Min | ½″ (13mm)
Preferred | ¼″ (7mm)
Max | 3 ¼” (80mm)

Above are mean joint sizes at mid-point of expected service temperature range

Movement

KF 250/70 and
KFE 250/71 (corner)
Max open joint: 2 ¼” (57mm)
Min closed joint: ¼” (7mm)

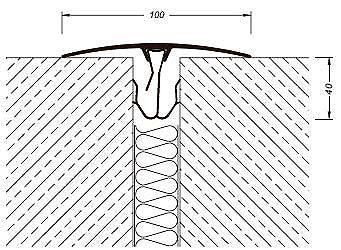

KF 250/100

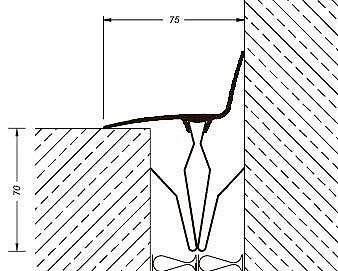

KFE 250/101 (corner)
Max open joint: 3 ¼” (80mm)
Min closed joint: ¼” (7mm)

Color

Aluminum

Model | Joint Sizes

KF 250/70 | ½ – 1 ½” (15 – 35mm)

KFE 250/71 (corner) | ½ – 1 ½” (15 – 35mm)

KF 250/100 | 1 ½ – 3 ¼” (35 – 80mm)

KFE 250/101 (corner) | 1 ½ – 3 ¼” (35 – 80mm)



Production Length

9.84′ (3 m)


Minimum Depth of Joint

KF 250/70
KFE 250/71 (corner)
1 ½” (40mm)
KF 250/100
KFE 250/101 (corner)
2 ¾” (70mm)

Visible Width



KF 250/70 | 2 ¾” (70mm)

KFE 250/71 (corner) | 2″ (50mm)

KF 250/100 | 4″ (100mm)

KFE 250/101 (corner) | 3″ (75mm)




Clips per 3m

KF 250/70
KF 250/71 (corner)
4
KF 250/100
KFE 250/101 (corner)
6
