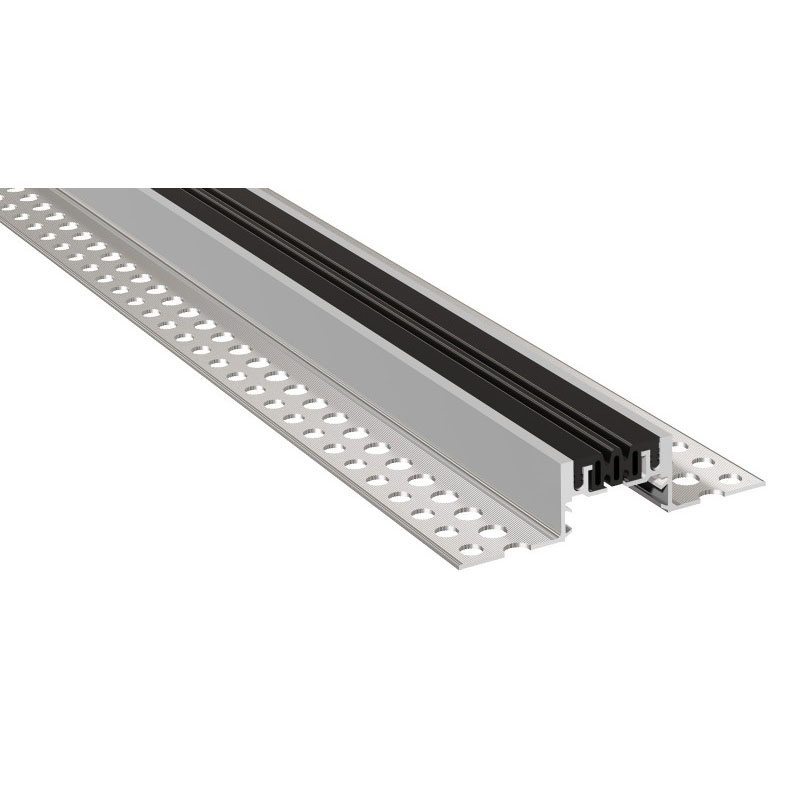

Migutec FP 55/35

For standard duty interior floors

Flexible high quality elastomeric insert
Hard wearing, replaceable, temperature resistant (-30°C to +120°C)

High load capacity due to sturdy construction
Solid aluminum brackets

Multi directional movement
MultiHole mounting bracket
for secure fixing

Quick and easy installation
Positive connection of production lengths by means of connection pieces

Features

  • ADA compliant
  • Load capacity: Normal interior use
  • Fire-rating available with EMSHIELD DFRConsult EMSEAL
  • Production length: 4m (13.12′)
  • Deck-to-wall E-4 corner versions available.

Sizes

Min| ½” (13mm)
Preferred| 2″ (50mm)
Max| 2″ (50mm)

Above are mean joint sizes at mid-point of expected service temperature range

Movement

5/8″= +5/16″ and -5/16″
16mm= +8mm and -8mm

Color

  • Black
  • Grey

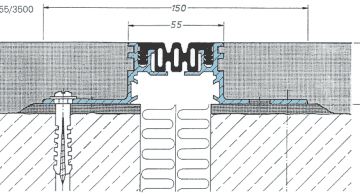

Model | Installation Height

FP 55/35 | 1 3/8” (35mm)
FP 55/35 E4 | 1 3/8” (35mm) — corner

Various leg heights are offered through special order. Consult EMSEAL.


Blockout Depth

Blockout depth = Leg Height + 1/4-inch (6mm) for EMSEAL-supplied epoxy-mortar setting-bed


Blockout Width

Blockout width will vary depending on joint-gap size—Consult EMSEAL
