CAD Library: SJS-FP System

Joint Sizes with * have 3D .DWF files available.

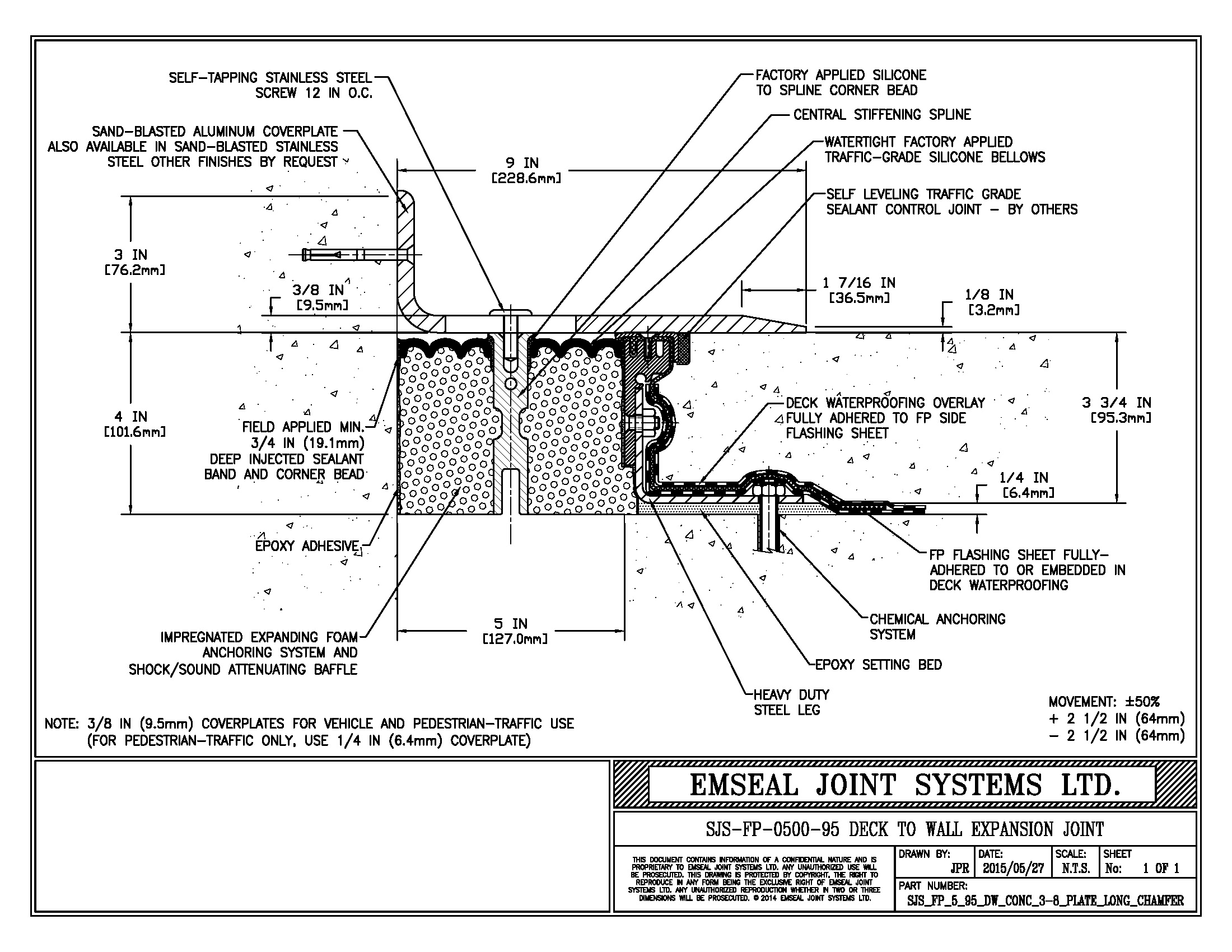

SJS_FP_5_95_DW_CONC_3-8_PLATE_LONG_CHAMFER_EMCRETE Deck to Wall Expansion Joint with Emcrete

SJS-FP Deck-to-Wall with Emcrete — 3 3/4 inch Leg Height and 3/8 inch Coverplate — 5 inch | 125mm

Download DWG Download PDF

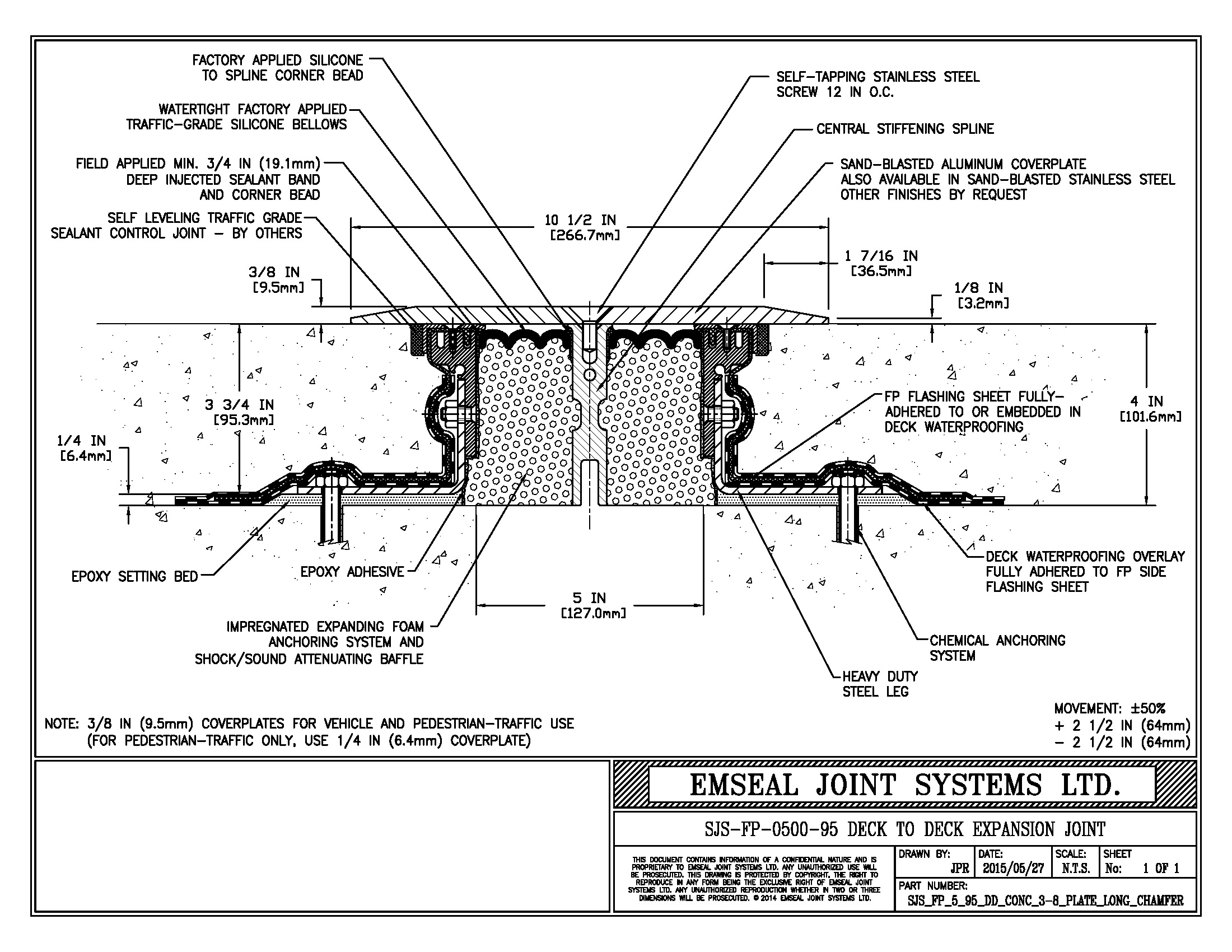

SJS_FP_5_95_DD_CONC_3-8_PLATE_LONG_CHAMFER_EMCRETE Deck to Deck Expansion Joint with Emcrete

SJS-FP Deck-to-Deck with Emcrete — 3 3/4 inch Leg Height and 3/8 inch Coverplate — 5 inch | 125mm

Download DWG Download PDF
SJS_FP_5_95_DW_CONC_3-8_PLATE_LONG_CHAMFER Deck to Wall Expansion Joint

SJS-FP Deck-to-Wall — 3 3/4 inch Leg Height and 3/8 inch Coverplate — 5 inch | 125mm

Download DWG Download PDF
SJS_FP_5_95_DD_CONC_3-8_PLATE_LONG_CHAMFER Deck to Deck Expansion Joint

SJS-FP Deck-to-Deck — 3 3/4 inch Leg Height and 3/8 inch Coverplate — 5 inch | 125mm

Download DWG Download PDF
SJS_FP_5_95_DW_CONC_1-4_PLATE_LONG_CHAMFER_EMCRETE Deck to Wall Expansion Joint with Emcrete

SJS-FP Deck-to-Wall with Emcrete — 3 3/4 inch Leg Height and 1/4 inch Coverplate — 5 inch | 125mm

Download DWG Download PDF
SJS_FP_5_95_DD_CONC_1-4_PLATE_LONG_CHAMFER_EMCRETE Deck to Deck Expansion Joint with Emcrete

SJS-FP Deck-to-Deck with Emcrete — 3 3/4 inch Leg Height and 1/4 inch Coverplate — 5 inch | 125mm

Download DWG Download PDF

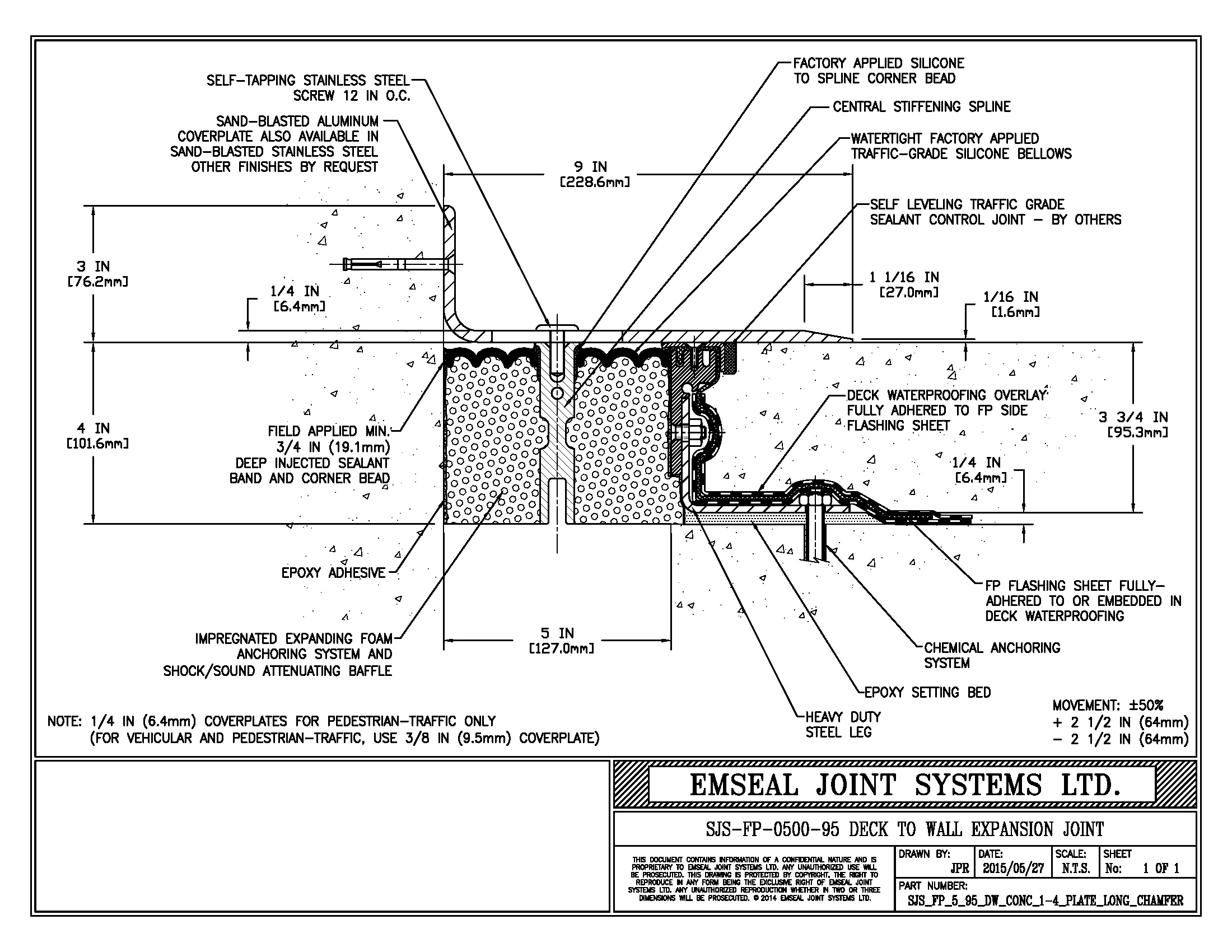

SJS_FP_5_95_DW_CONC_1-4_PLATE_LONG_CHAMFER Deck to Wall Expansion Joint

SJS-FP Deck-to-Wall — 3 3/4 inch Leg Height and 1/4 inch Coverplate — 5 inch | 125mm

Download DWG Download PDF
SJS_FP_5_95_DD_CONC_1-4_PLATE_LONG_CHAMFER Deck to Deck Expansion Joint

SJS-FP Deck-to-Deck — 3 3/4 inch Leg Height and 1/4 inch Coverplate — 5 inch | 125mm

Download DWG Download PDF

Download DWF Viewer Here
