Nashville SC, GEODIS Park MLS Stadium, Tennessee
Tennessee
Date: 2021, 2022
Stadium Expansion Joint details and design should always start with 3-D renderings. This crucial element can make or break waterproofing your building enclosure. The designer on the Nashville SC GEODIS Park MLS Stadium, Populous, understands and implements this strategy expertly. Axon drawings of the expansion joints, and required transitions, lay-out the components for more accurate bidding, which reduces RFI’s and change orders. These also assist the GC and subcontractors with sequencing and mobilization for successful and efficient installations. This project was a success from beginning to end and it’s all thanks to a collaborative effort and proven process of designing these magnificent structures in 3-D.

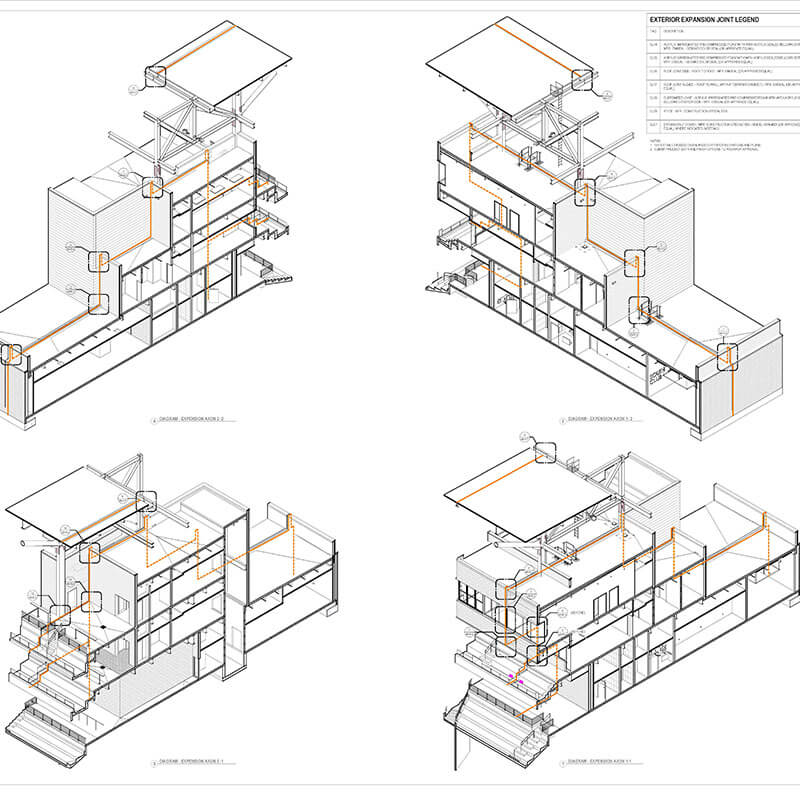

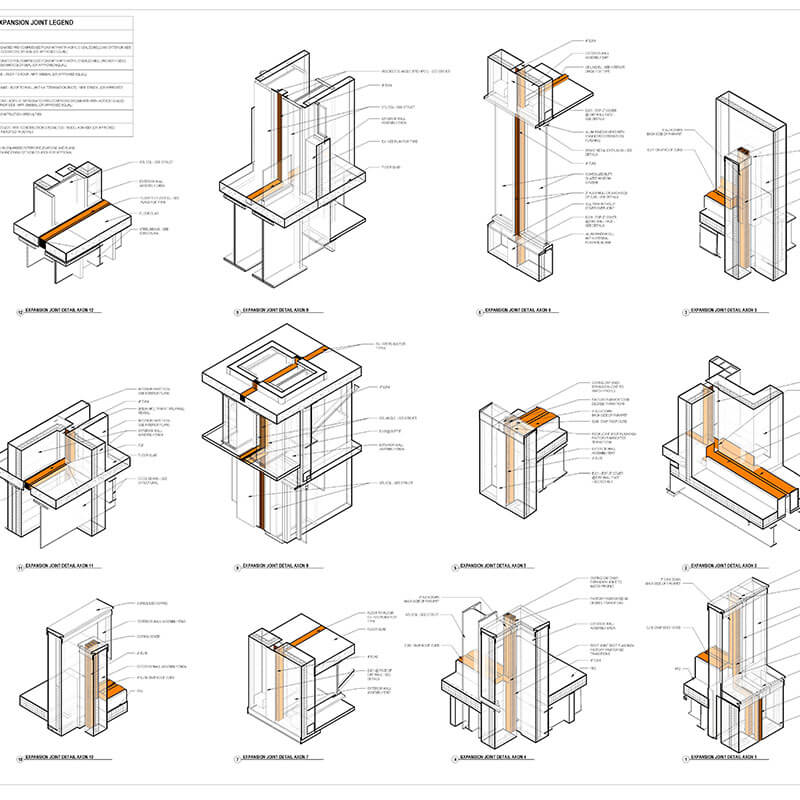

Expansion Joint Details - Axon View
-
- Expansion Joint Details Highlighted in Axon View
-
- Expansion Joint Details to Show Transition Requirements
The 3-D Design Assists with the Various Trades Coordination

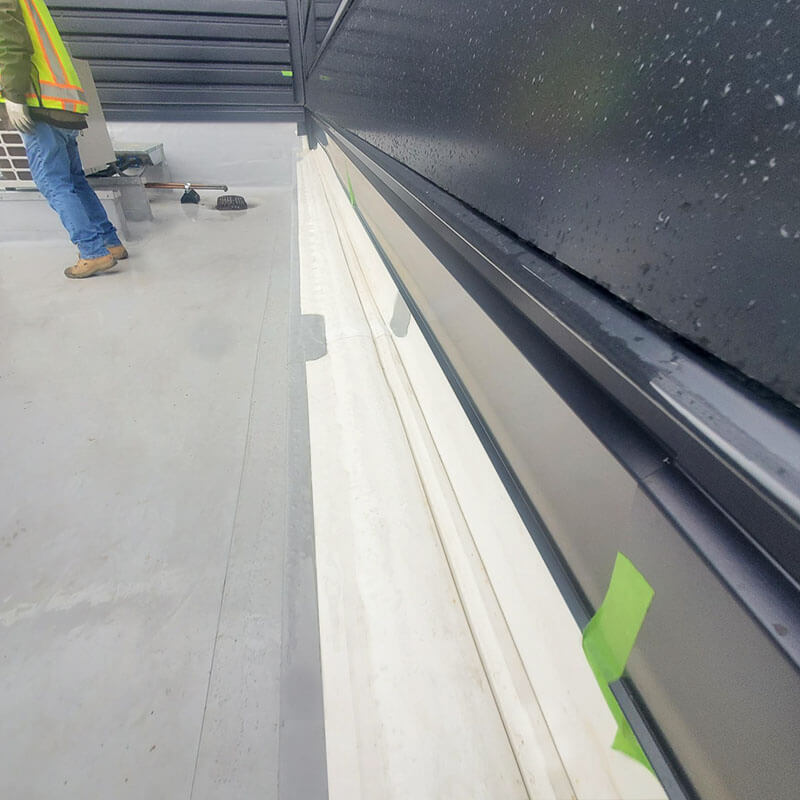

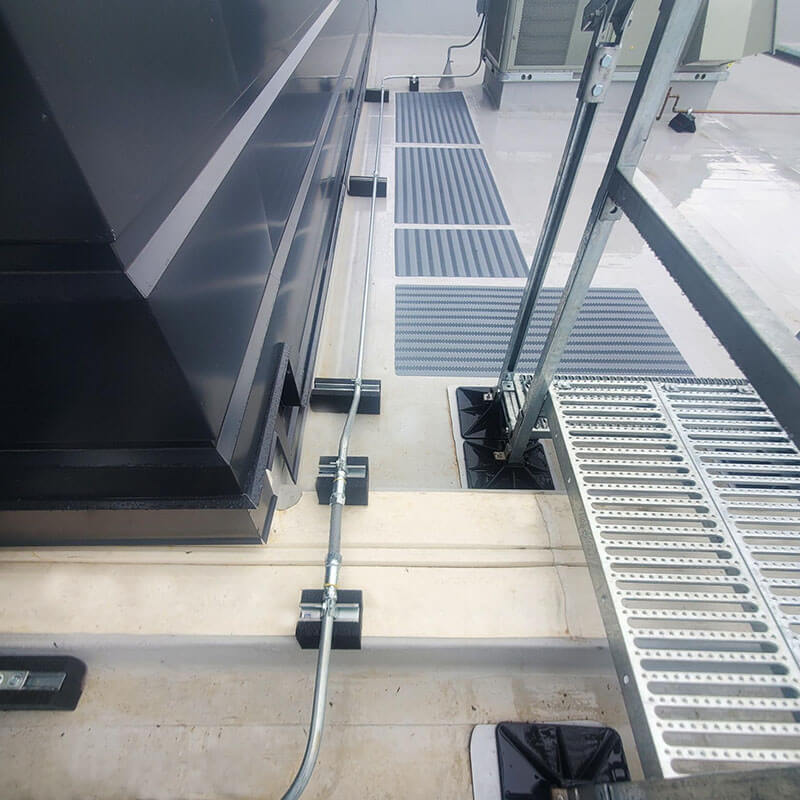

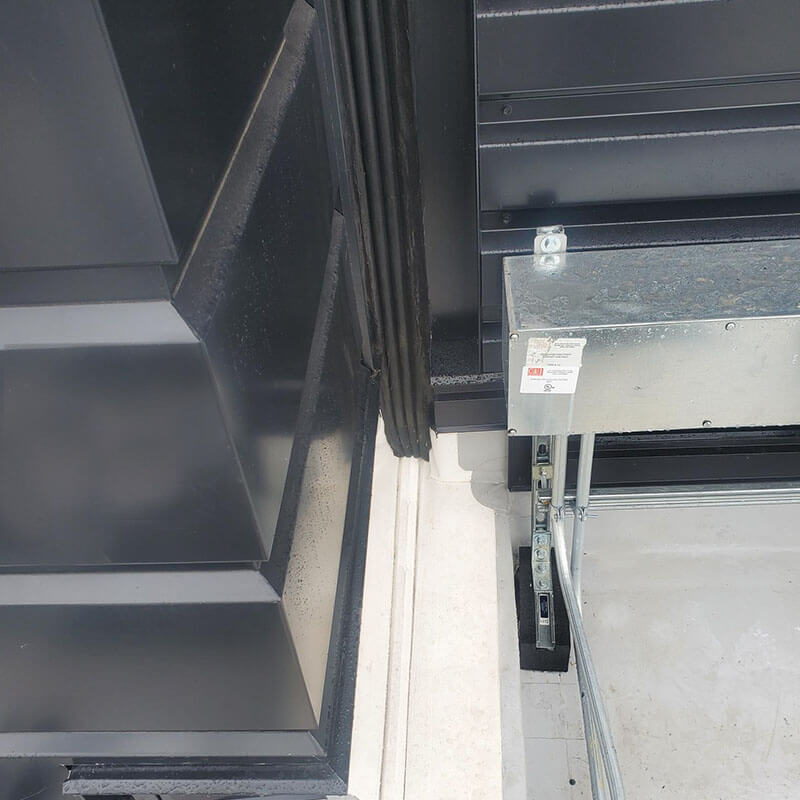

Watertight Building Enclosure from Roof to Wall

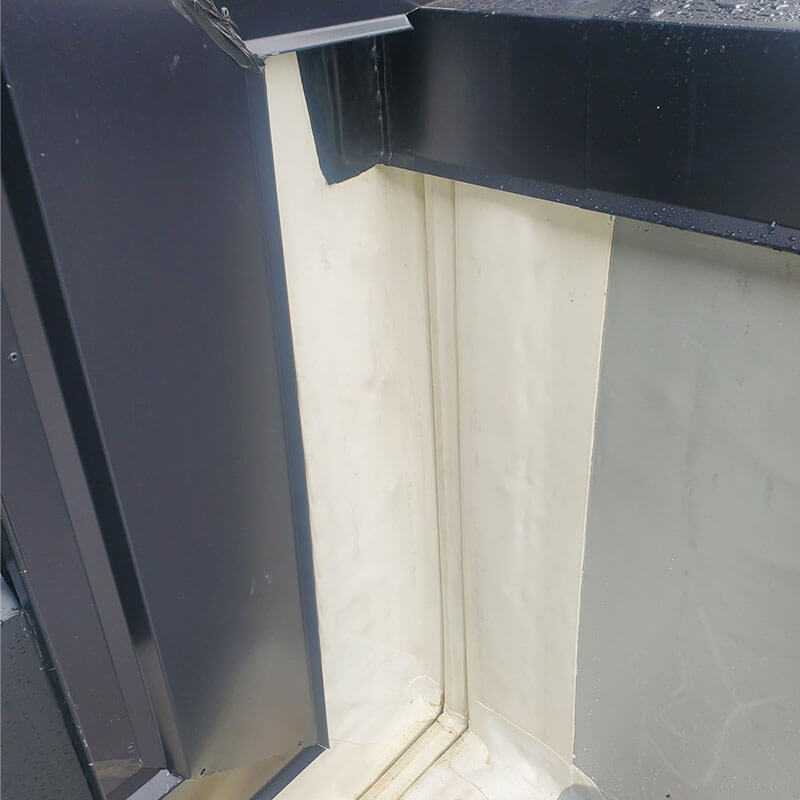

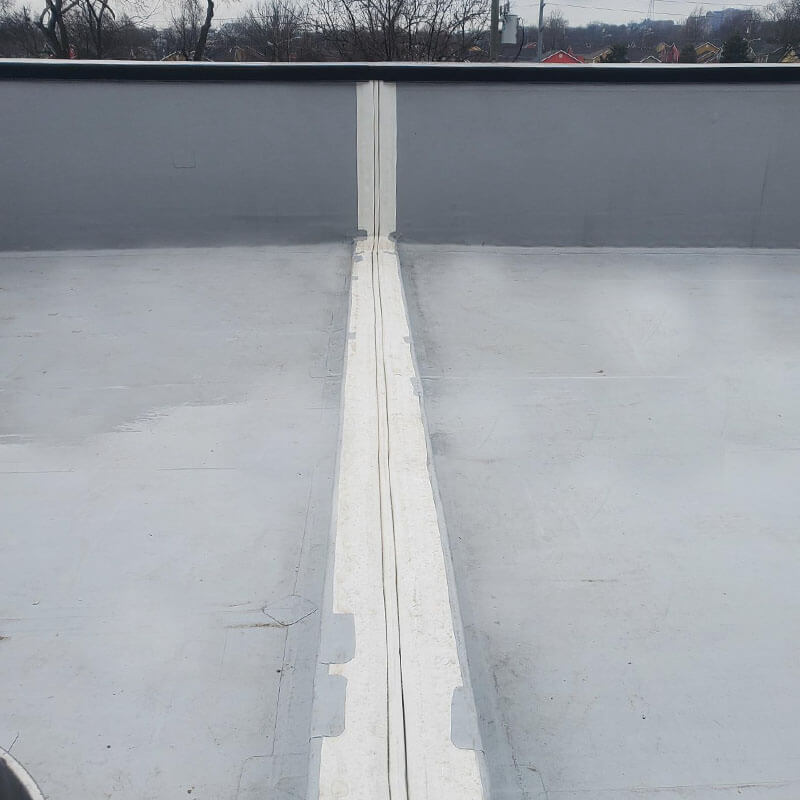

Roof Parapet Transition Factory Welded to Ensure Continuity of Seal

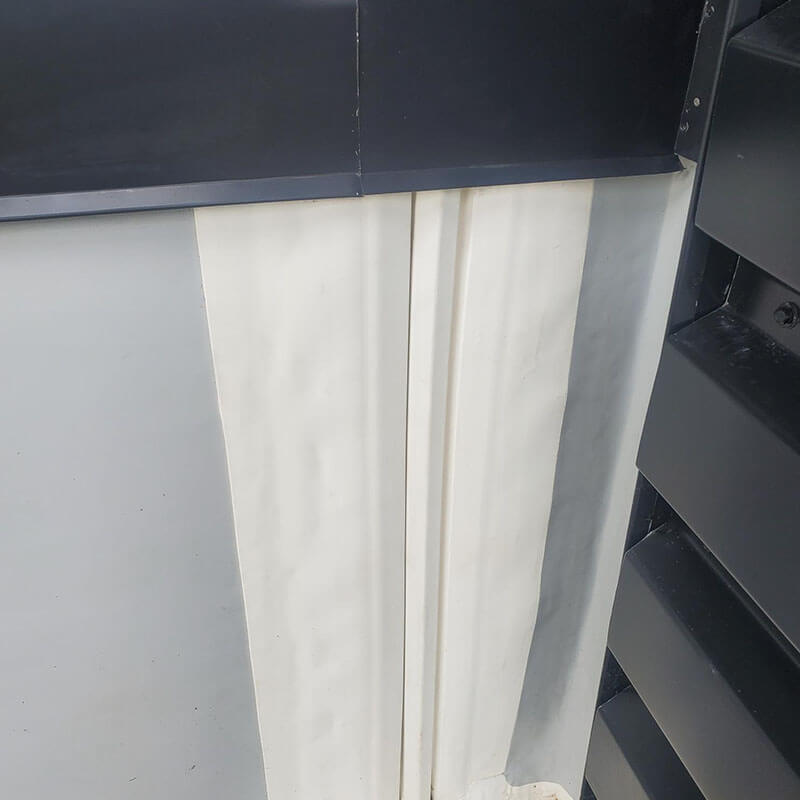

Roof Expansion Joint Cover Termination Concealed with Parapet Cap Flashing
