Wabo®StripSeal (SSS) – Parking Series

An Armored Expansion Joint Strip Seal for Parking Deck Applications

Sika Emseal now supports and sells all Wabo® Commercial products.

Wabo®StripSeal is a heavy-duty system capable of accommodating multi-directional seismic movement.

Elastomeric seals lock into the steel extrusion cavity for a watertight connection. A variety of elastomeric seals, steel and aluminum profiles, steel angles, plates and channels allow for engineered solutions to unique project conditions in parking decks, elevated roadways, entrance ramps and other structures.

Can be anchored with Emcrete II elastomeric polyurethane header, cast into the concrete slab or bolted into blockouts.

Wabo®StripSeal (SSS) – Parking Series

An Armored Expansion Joint Strip Seal for Parking Deck Applications

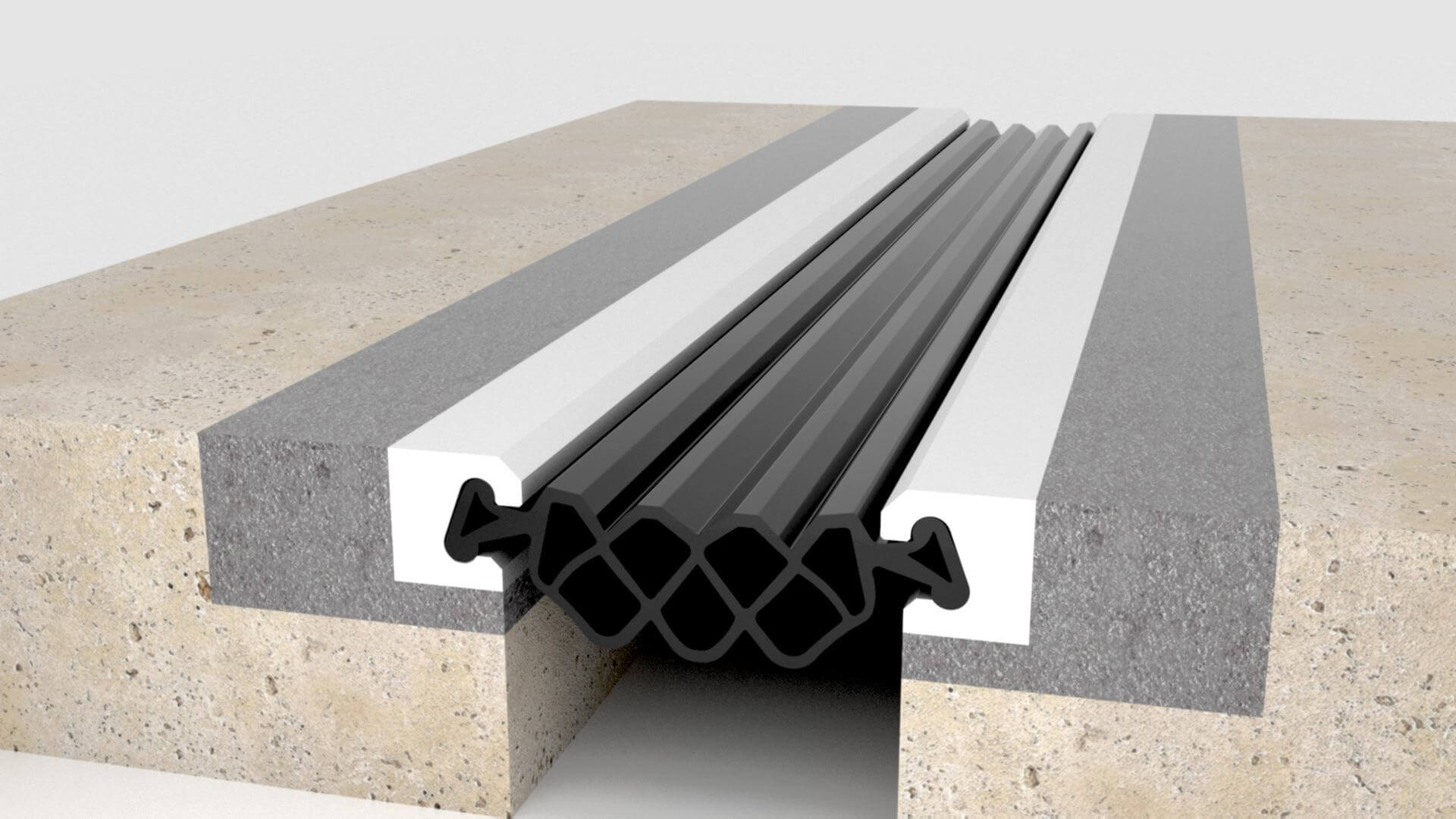

Wabo StripSeal an armored expansion joint strip seal for parking decks by Sika Emseal

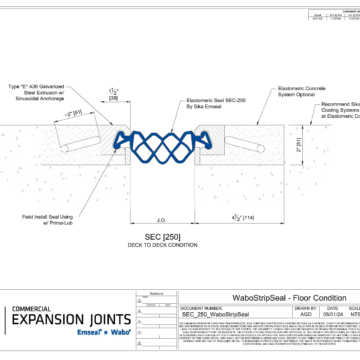

Wabo StripSeal (SEC-250) an armored expansion joint strip seal for parking decks CAD Detail by Sika Emseal
1 of 2

Wabo®StripSeal (SEC-250) is a blockout mounted armored expansion joint strip seal for parking decks.

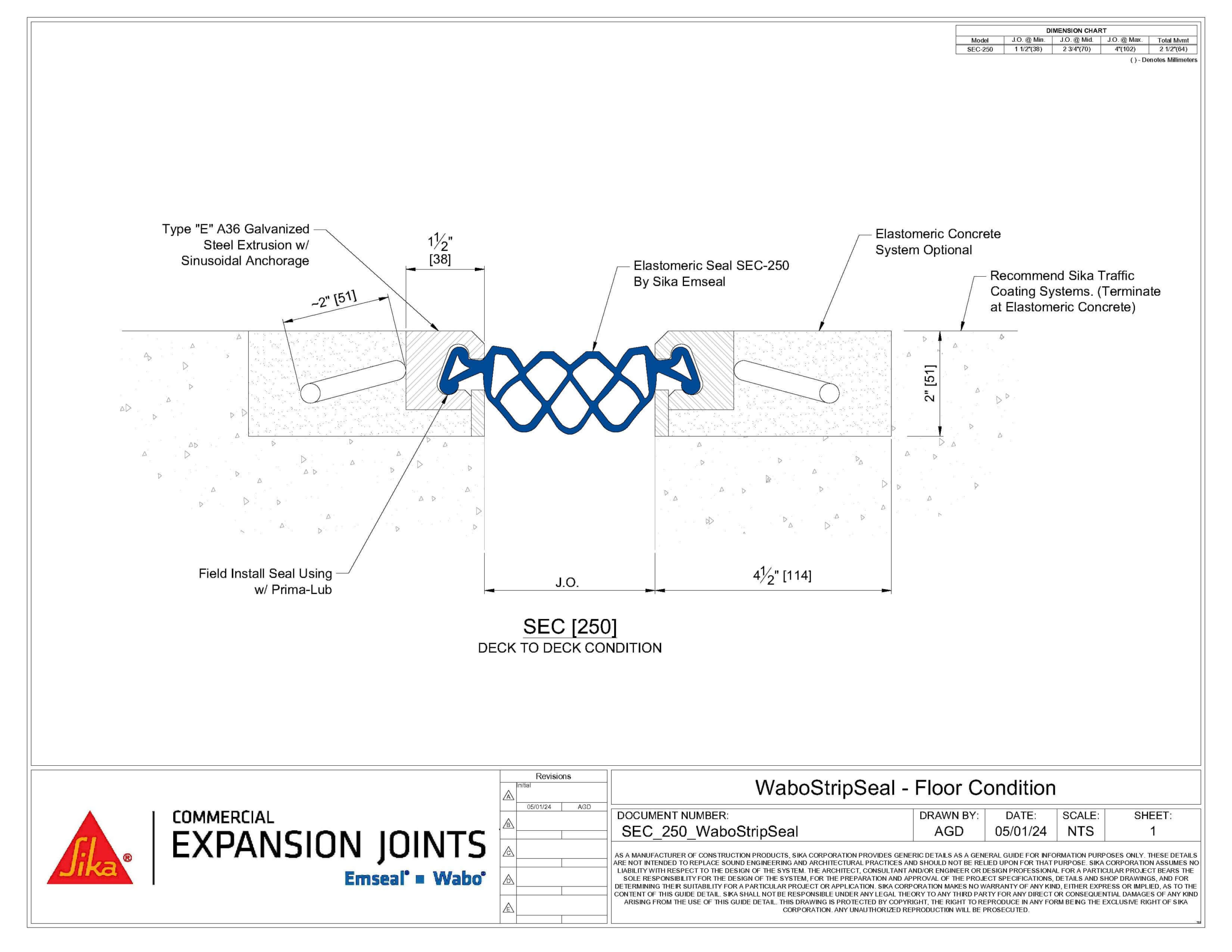

Wabo StripSeal (SEC-250) an armored expansion joint strip seal for parking decks CAD Detail by Sika Emseal

Features

  • Cast in-place
  • Watertight
  • Impact resistant
  • Blockout mounted
  • Seismic movement capable
  • Durable under heavy-duty traffic

Sizes

Available for mean-temperature joint sizes 2″ (50mm) up to 2 3/4″ (70mm).

Movement

Movement as a percentage of nominal joint size varies by model. Up to or in excess of 100% of nominal joint size movement capability is typical in most applications.

Color

Standard color is black for sealing glands and optional black polyurethane nosing.

Uses

  • Parking decks/car parks
  • Stadiums
  • Decks
  • Mall bridge connectors
  • Roadways
  • For cast-in-place, precast and post-tensioned concrete substrates
  • Convention centers

Availability & Pricing

  • Contact Sika Canada Expansion Joint Team for availability, pricing, and technical support: Expansion Joint Systems | Sika Canada
  • The product range is continually being updated, and accordingly EMSEAL® reserves the right to modify or withdraw any product without prior notice.
