Migutec FN 20/12

For standard duty interior floors and walls

Surface mounted expansion joint cover for floors, walls, ceilings
Striated surface ensures good slip resistance
Flexible high quality elastomeric insert
Hard wearing, temperature resistant (-30°C to +120°C)

Economical
Replaceable insert

Low profile design

Migutec FN 20/12

For standard duty interior floors and walls

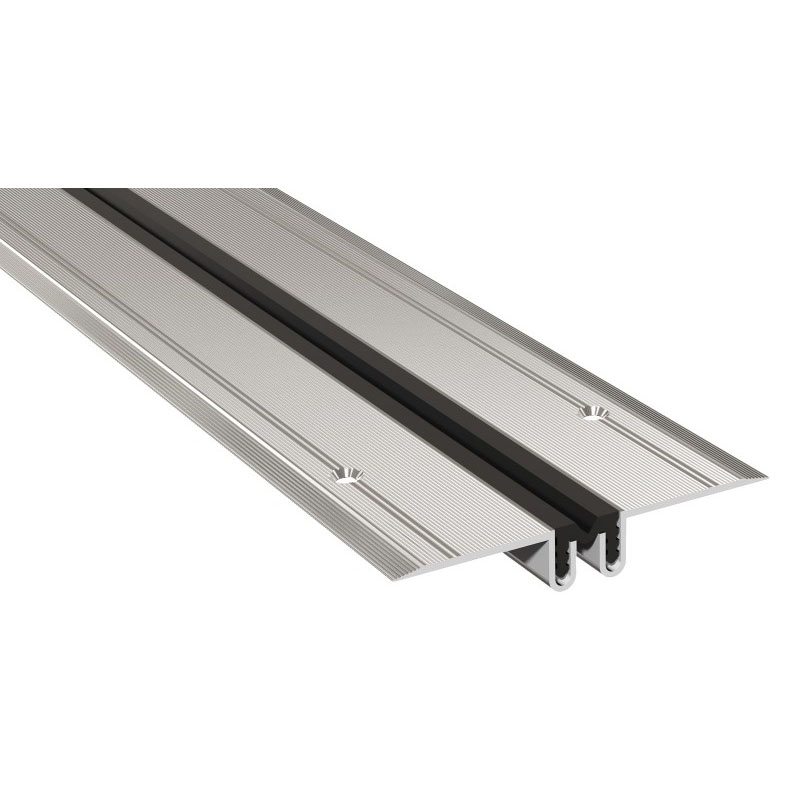

Interior Expansion Joint Migutec FN 20
MIGUTEC FN 20
surface mounted expansion joint FN20
1 of 3

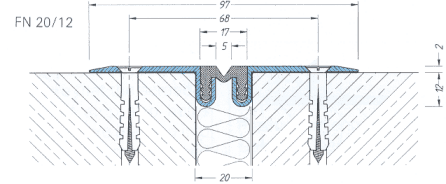

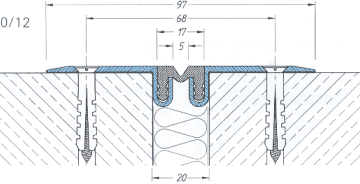

FN 20/12 Surface Mounted, Flush Insert

Features

  • Quick installation, low profile
  • ADA compliant
  • Standard load capacity
  • Flush insert floor and wall
  • Fire-rating available through addition of Emshield DFR—Consult EMSEAL

Sizes

Min| 3/4″ (20mm)
Preferred| 3/4″ (20mm)
Max| 1 1/4″ (30mm)

Above are mean joint sizes at mid-point of expected service temperature range

Movement

3/16″ = +1/8″ and -1/16″
(5mm = +3mm and -2mm)

Color

  • Black
  • Grey

Installation Leg-Height Options

Models | Installation Height

FN 20/12 | 7/16” (12mm)

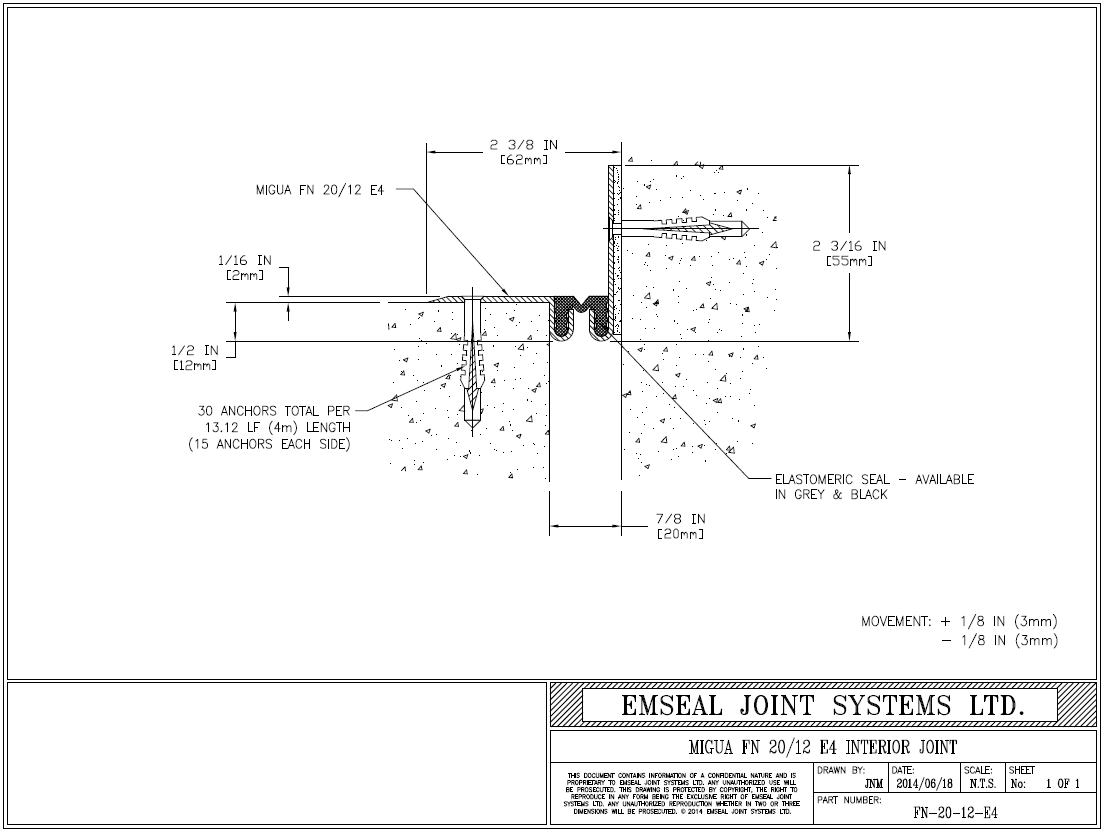

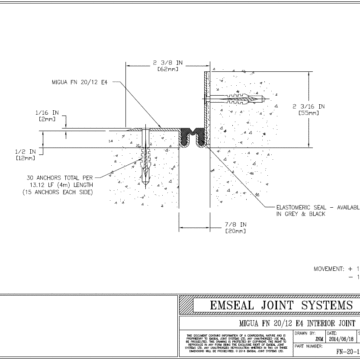

FN 20/12 E4 | 7/16” (12mm) — corner
