Skybridge expansion joints from JFK terminal to TWA Hotel sealed with Emseal

Curtainwall expansion joints are tapered and curved to follow the iconic curves of the Saarinen-designed, recently rejuvenated TWA Hotel project at JFK International Airport. Our Seismic Colorseal expansion joint material plays a small but critical role in sealing some of these varying, compound curved junctions in this masterpiece–the former TWA Flight Center.  This icon of art and architecture has now been magnificently restored, reimagined and repurposed in a bold and inspired project by MCR/Morse Development as the TWA Hotel.

A 90-minute layover left time for a self-guided tour—just enough to marvel at the genius of this work and to see why accolades continue to be heaped on this project. The space is inspiring. Saarinen’s soaring thin-shell concrete ceilings and complementary curved columns and cantilevers defy gravity and give the sense that the structure is buoyed up by air. No detail has been spared in featuring the mid-mod magnificence of the age and Saarinen’s iconic tulip furniture is prominently present and elegantly reechoed in the hotel rooms of Beyer Blinder Belle’s two new flanking hotel room towers. These structures are connected to the original oval concrete sky bridges into which connecting curtainwall walks have been added. It’s at these junctures that Seismic Colorseal shines. Non-invasively anchored, compressible, insulating, watertight and with the ability to size-switch to accommodate varying joint widths, the precompressed foam sealant expansion joint from Emseal uniquely addresses the many design challenges of these complex connections.

Curtainwall Concrete Tapered Expansion Joints

Skywalk tunnel to curtinwall expansion joints at JFK terminal to TWA Hotel by Emseal

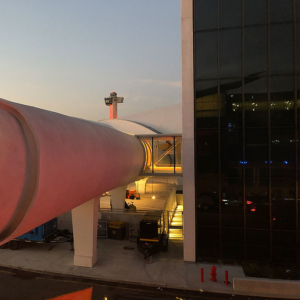

Step off the TWA Hotel elevator from the Jet Blue Terminal at JFK and you’re met immediately with the stunning visual of the skybridge to the hotel. The marriage of new curtainwall with the curved perimeter of the concrete tunnel poses a unique sealing problem.

Curved Expansion Joints

Curved expansion joints compounded by tapering can be dealt with using a precompressed foam sealant like Seismic Colorseal. Prior to the availability of this ground breaking hybrid sealant of impregnated foam and silicone, strip seals and extruded compression seals would have been impossible to install to function while looped rubber membranes would have left the joints uninsulated. In this case double-sided Seismic Colorseal-DS was used which adds the further benefit of being customizable to the depth of the curtainwall mullion so that both sides of the joint can be sealed with a single product in a single installation. And, the additional depth only works to enhance the R-Value and the already exceptional sound attenuation value of the material. With an OITC of 38 at standard depth and 52 at 6-inches (150mm) of depth, there is no chance that these junctions will be flanking paths for exterior noise common to airports.

Curved expansion joints handled with Emseal Seismic Colorseal at TWA Hotel at JFK

Non-Invasive, Insulated

Non-invasively anchored Seismic Colorseal at concrete to curtainwall - Emseal

R-value, non-invasive anchoring and the ability to bend in both planes make Seismic Colorseal uniquely suited to sealing joints in curtainwall, concrete, or any substrate–curved or straight. Irregularities in the rough substrates on the concrete are easily handled as well. The pliability of the foam-and-silicone-hybrid combined with the stored strain energy of compression inherent the precompressed foam backing ensure a complete seal regardless of variations in joint surface.

Elimination of Tension Key to Performance in Moving Joints

The difference between the ability of a precompressed foam sealant and traditional “caulk-and-backer rod” to handle varying widths in moving joints is evident in this image. This can be easily be remedied with the replacement of the liquid sealant with Colorseal-On-A-Reel which provides the benefits of Seismic Colorseal but for smaller joints.  The precompressed nature of the product and resulting silicone bellows means the sealing system is free of tension — both at the bond line and in the cured elastomer across the joint gap. Adhesion in tension is the primary cause of failure in conventionally installed sealant joints. Elimination of tension ensures longevity, eliminates the need for regular replacement, results in lowest-total-cost-of-ownership expansion joints available. Longer lifespan means lower cost of operation, less patron disruption from construction activity and noise, and less waste from removal and replacement.

Emseal Seismic Colorseal to failed caulk

Skybridge to Hotel Junction Expansion Joints

Skywalk to TWA Hotel - expansion joints by Emseal Expansion joints from skybridge to terminal and to hotel rooms -- Seismic Colorseal by Emseal

Architect Beyer Blinder Belle’s artful choice of vertically-fluted precast provides a complementary contrast to the curves of the original TWA Flight Center with the end walls of the new flanking hotel room wings  The blackened glass curtainwall on the elevations of the room wings bookends the flight-center centerpiece–staging Saarinen’s masterpiece as the focal point.

Watertight, Insulated, Moving - Skybridge Expansion Joints

Expansion joint at skybridge to TWA Hotel Seismic ColorSeal by Emseal

Seismic Colorseal once again shines in the complex demands of the skybridge to hotel-room wings. The requirement to be installed at inside corners, between two different substrates (alumimun and concrete), the need for continuity of seal at outside corner transitions all but rules out strip-seal or other joint sealing options.

Inspiring, Soaring, Interior

TWA Hotel interior - Emseal Flight Board at TWA Flight Center now TWA Hotel - Emseal expansion joints Lounge at TWA Hotel - Expansion Joints by Emseal Eero Saarinen tulip table and chairs at TWA Hotel - Expansion joints Emseal

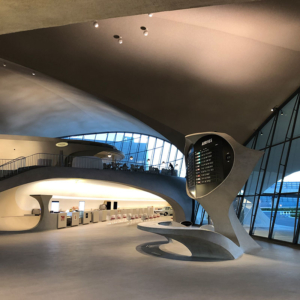

The interior of the former flight center is as awe inspiring as the exterior. The thin-shell concrete structure, catanary curves, cantilevers, curvaceous columns and plinths, and tulip tables and chairs–all signatures of Eero Saarinen–have been preserved and placed with curated care in this living homage to original intent and to the high style of the 1960’s. Anyone with an interest or passion for architecture, art, aviation, or appreciation for the challenges of an intentional built environment, can’t possibly help but be moved by being present in this space.

No Detail Spared

Front main door of TWA Hotel JFK - Emseal expansion joints TWA Hotel exterior - by Emseal Emseal used at TWA Hotel refurbishment

The exterior elevations from every angle are a feast for the eyes and mind–from the front and side, to the spectacularly cantilevered portico. No detail in this restoration has been spared. The Lockheed Constellation (now a cocktail lounge) with attending baggage train are just some of the many transcendent details chosen to make a stay or a visit to the TWA Hotel a fully immersive experience–a must see for anyone in any way associated with the built environment or merely inspired by art, aviation, ingenuity, or commitment to preservation and adaptive reuse.
