Wabo®GutterFlex (BOG, USG)

Reinforced Membrane Seismic Expansion Joint Gutter System - Blockout or Underslab Mounting Options.

Sika Emseal now supports and sells all Wabo® Commercial products.

A reinforced membrane expansion joint gutter system, Wabo®GutterFlex (BOG, USG) is a flexible fabric reinforced membrane that accommodates seismic movement and compresses without damage during the full cycle of joint closure. The system collects and drains excess amounts of moisture through an optional drain tube that exhibits similar flexibility.

The block out or under slab versions can be used as a secondary back up to any expansion joint system providing a “belt-and-suspenders” approach to waterproofing the expansion joint.

The continuous membrane collects and moves water away from expansion joint openings and prevents moisture intrusion into lower levels.

Utilized in joint widths from 1″ – 26.5″ wide (25 – 675mm) and up to +/- 100% movement (Consult Sika Emseal for size and movement options).

Under slab (USG) provides a cost effective solution for remedial repair of failing expansion joint systems.

Specify SafetyFlex (SFP) for seismic expansion joint cover option.

Wabo®GutterFlex (BOG, USG)

Reinforced Membrane Seismic Expansion Joint Gutter System - Blockout or Underslab Mounting Options.

Wabo®GutterFlex neoprene flexible gutter expansion joint system blockout mounted with drainage tube for water management with seismic movement by Sika Emseal
Wabo®GutterFlex neoprene flexible gutter expansion joint system blockout mounted with drainage tube for water management with seismic movement by Sika Emseal
Wabo®GutterFlex neoprene flexible gutter expansion joint repair system under slab mounted with drainage tube for water management with seismic movement by Sika Emseal
Wabo®GutterFlex neoprene rubber flexible gutter expansion joint repair system under slab mounted with drainage tube for water management with seismic movement by Sika Emseal

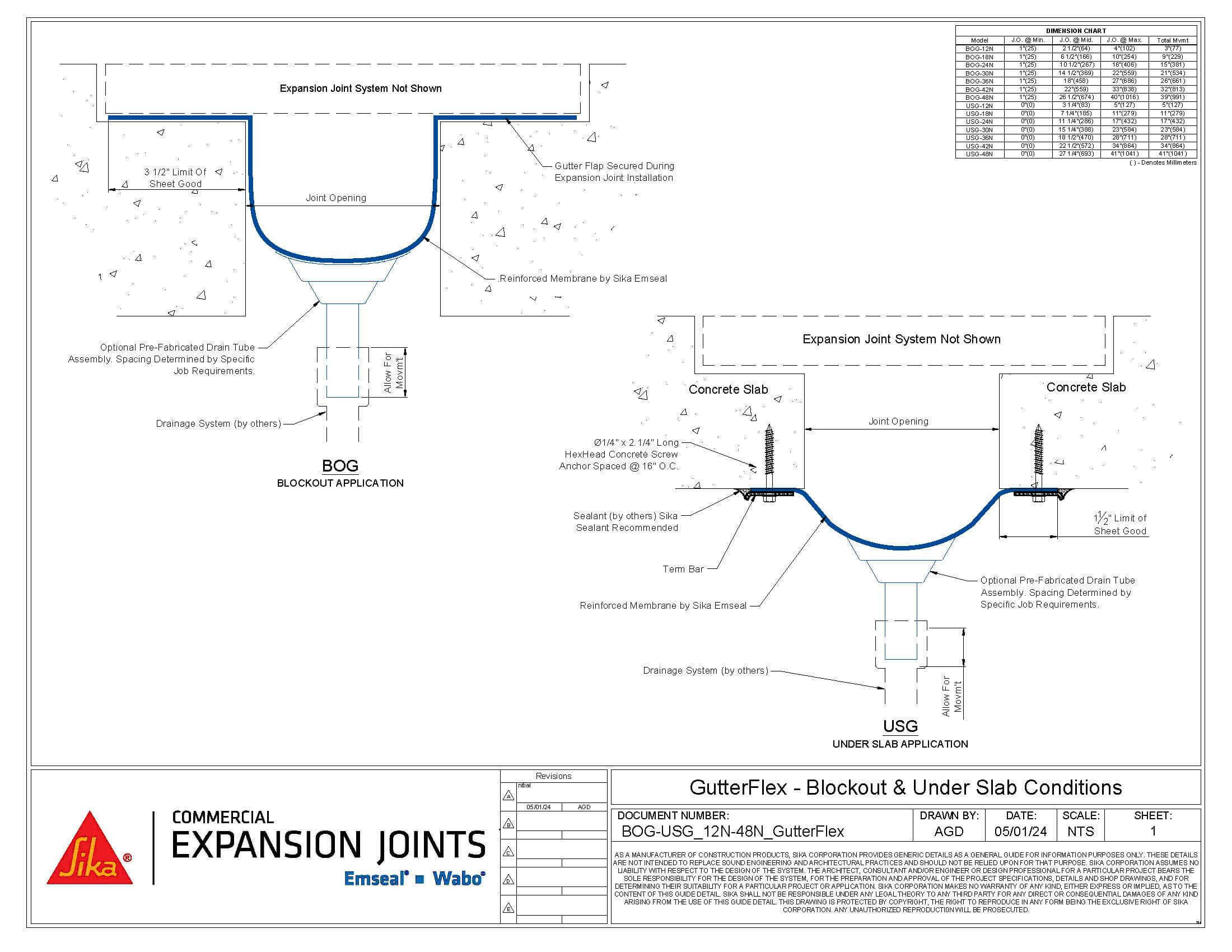

Wabo GutterFlex (BOG/USG) neoprene flexible gutter expansion joint system for water management in underslab and blockout mounted conditions CAD Detail Image by Sika Emseal
1 of 5

Wabo®GutterFlex is a seismic movement capable expansion joint gutter system that collects and drains water away from the joint opening.

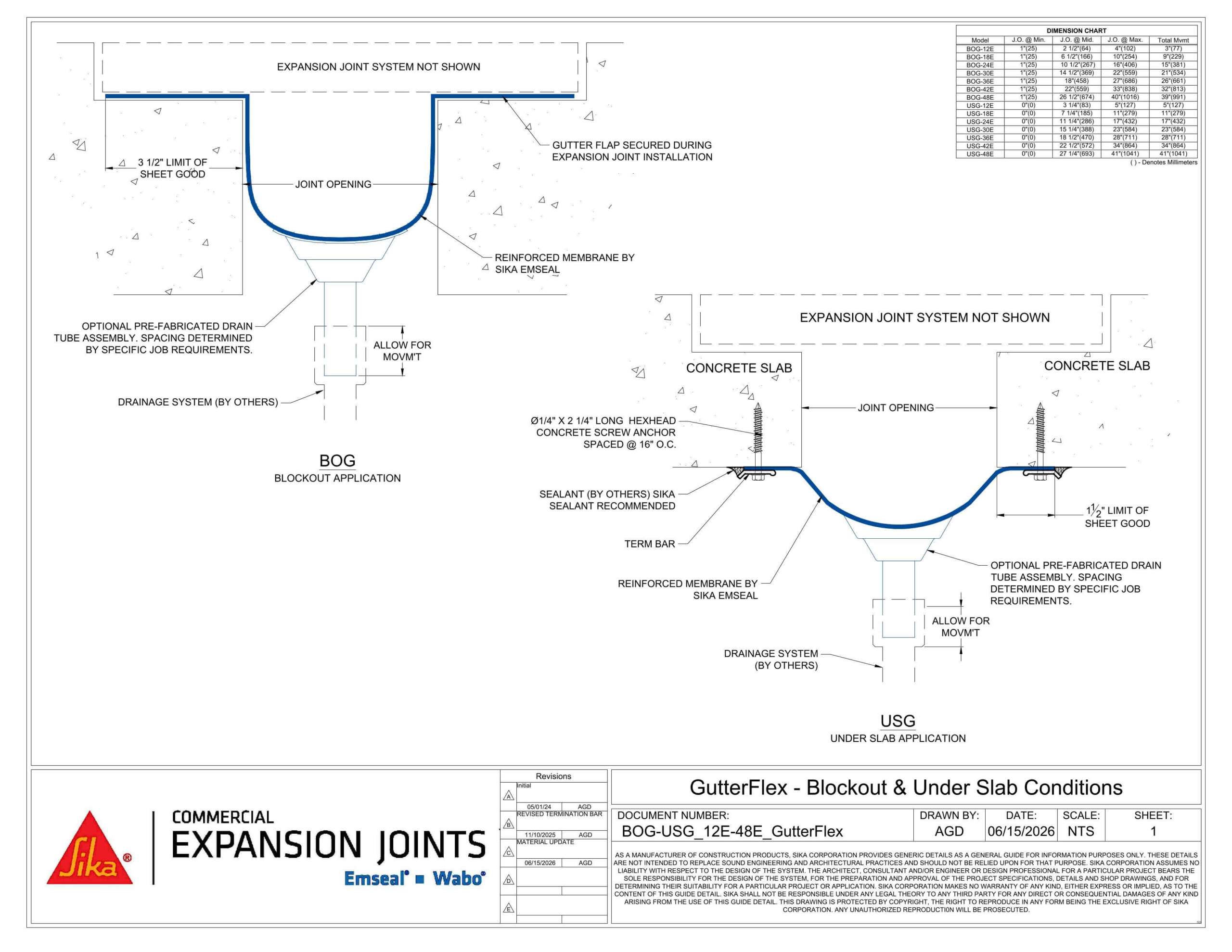

Wabo GutterFlex (BOG/USG) flexible gutter expansion joint system for water management in underslab and blockout mounted conditions CAD Detail Image by Sika Emseal

Features

  • Flexible fabric reinforced membrane
  • Optional drain tube
  • 200% movement capable
  • Seismic and thermal movement
  • Under slab mounting option for economical repair
  • Secondary joint seal

Sizes

10″ – 20″ (255 – 510mm) for +/- 100% movement
10″ – 26.5″ (255 – 675mm) for +/- 50% movement

Contact Sika Emseal for specific size/movement options.

Above are mean joint sizes at mid-point of expected service temperature range

Movement

up to 200% total

Color

Black

Uses

  • Floors and decks
  • Stadiums
  • Parking decks
  • Deck-to-deck
  • Deck-to-wall
  • Arenas

Availability & Price

  • Available for shipment internationally.
  • Prices are available from local distributors or representatives. For more information, contact EMSEAL.
  • The product range is continually being updated, and accordingly EMSEAL® reserves the right to modify or withdraw any product without prior notice.
