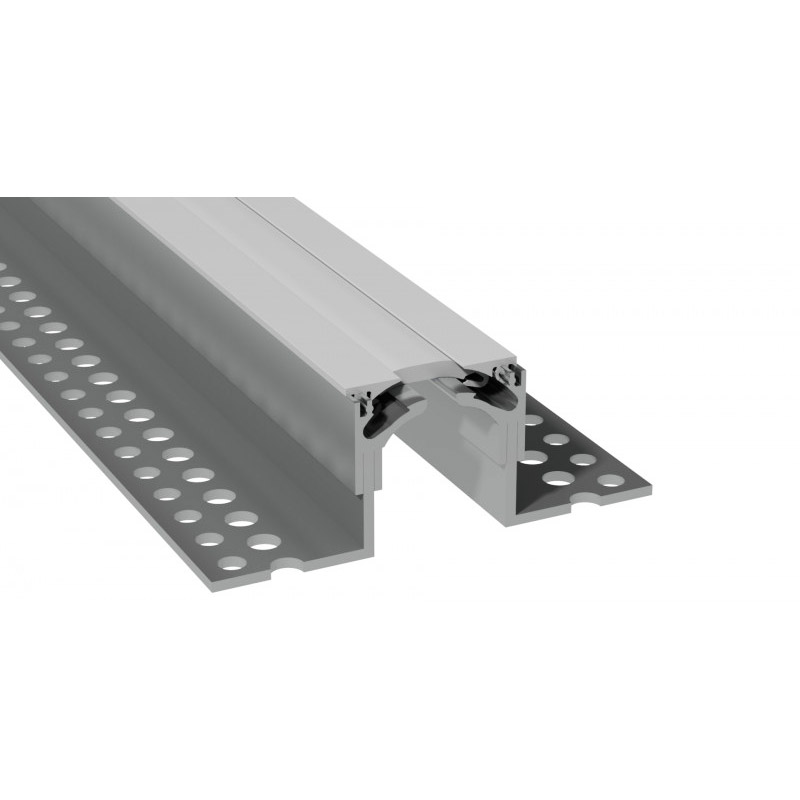

Migutec FGH2 65/30

The expansion joint profile for areas with strict hygienic requirements and high aesthetic demands

Ultra-smooth insert for residue-free cleaning
Thus optimal sterility and physiologically safe

Seamless, symmetrical visible surface
Hard-wear special insert for smoother, low-noise transit

Innovative solution
High movement capability due to innovative system

New Innovative clip design
Insert is fully replaceable over entire length of expansion joint
cover

High load capacity due to sturdy construction
Solid aluminum brackets

Secure fixing due to MultiHole mounting bracket
Flexible anchoring and excellent bond

Ideal for use with various types of floor covering

Migutec FGH2 65/30

The expansion joint profile for areas with strict hygienic requirements and high aesthetic demands

Características

  • Quick installation, low profile
  • ADA compliant
  • Standard load capacity
  • Flush insert floor and wall
  • Floor-to-wall versions E4 available
  • Fire-rating available through addition of Emshield DFRConsult EMSEAL

Tamaños

Min| 13/16″ (20mm)
Preferred| 13/16″ (20mm)
Max| 2″ (50mm)

Above are mean joint sizes at mid-point of expected service temperature range

Movimiento

3/4″ = +3/8″ and -3/8″
(20mm = +10mm and -10mm)

Colores

Black, Grey

Model # | Leg-Height

FGH2 65/30 | 1 3/16″ (30mm)

Various leg heights offered through special order. Consult EMSEAL.


Blockout Depth

Blockout depth = Leg Height + 1/4-inch (6mm) for EMSEAL-supplied epoxy-mortar setting-bed


Blockout Width

Blockout width will vary depending on joint-gap size—Consult EMSEAL
